Integrate LINE Ads Network with mediation (Beta)

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Line using AdMob Mediation, covering waterfall integrations. It covers how to add Line to an ad unit's mediation configuration, and how to integrate the Line SDK and adapter into an Android app.

The dashboard interface for LINE Ads Network uses Japanese text for its labels, buttons, and descriptions. The screenshots in this guide have not been translated. In this guide's descriptions and instructions however, labels and buttons are translated with their English language equivalents in parentheses.

Supported integrations and ad formats

The mediation adapter for LINE Ads Network has the following capabilities:

Integration
Bidding
Waterfall  1
Formats
Banner
Interstitial
Rewarded
Native
1 Waterfall integration is in open beta.

Requirements

  • Android API level 21 or higher

Step 1: Set up configurations in LINE Ads Network UI

Log in to your LINE Ads Network account.

Add a new application

Click 広告枠管理 (Ad Slot Management) > メディア (Media). Then, click 新規作成 (Create New).

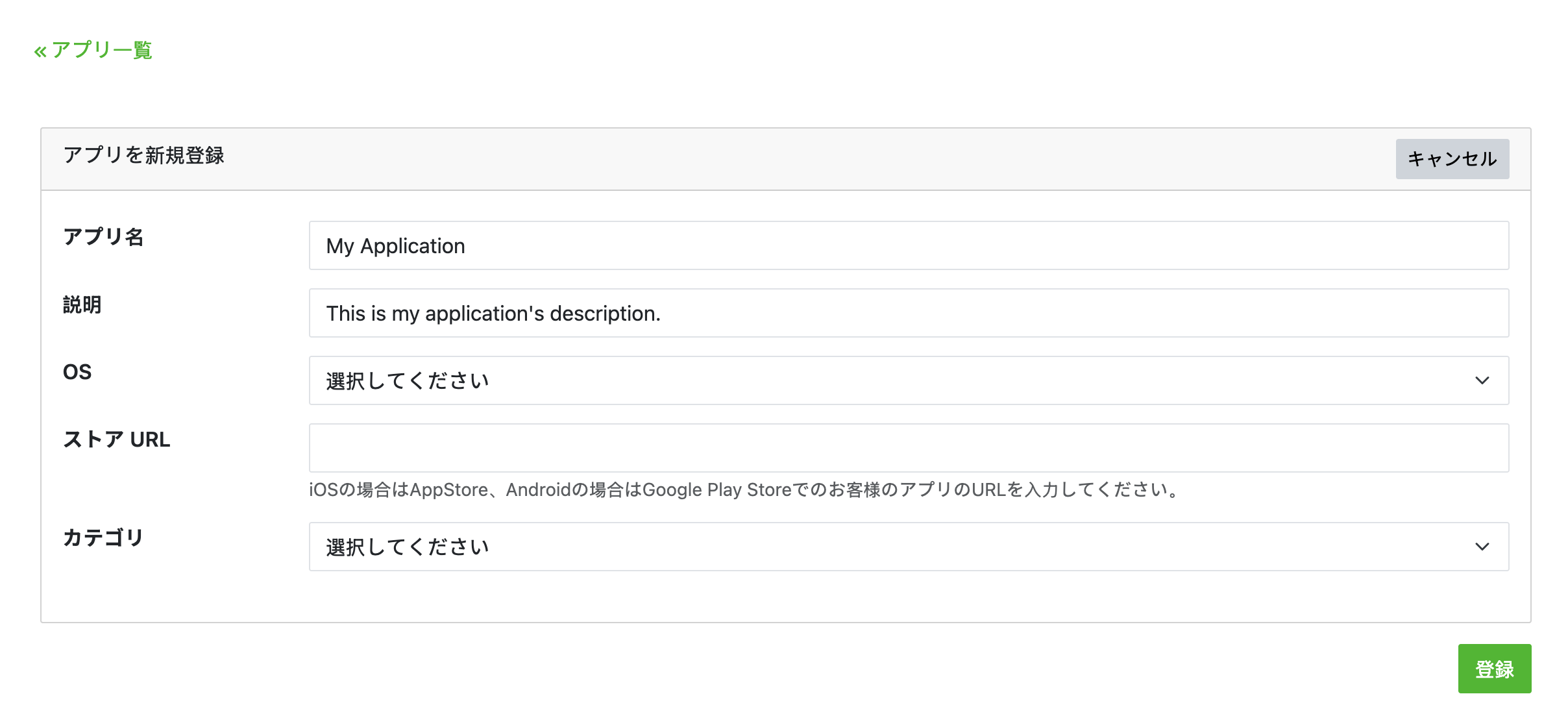

Fill out the form and click 登録 (Register).

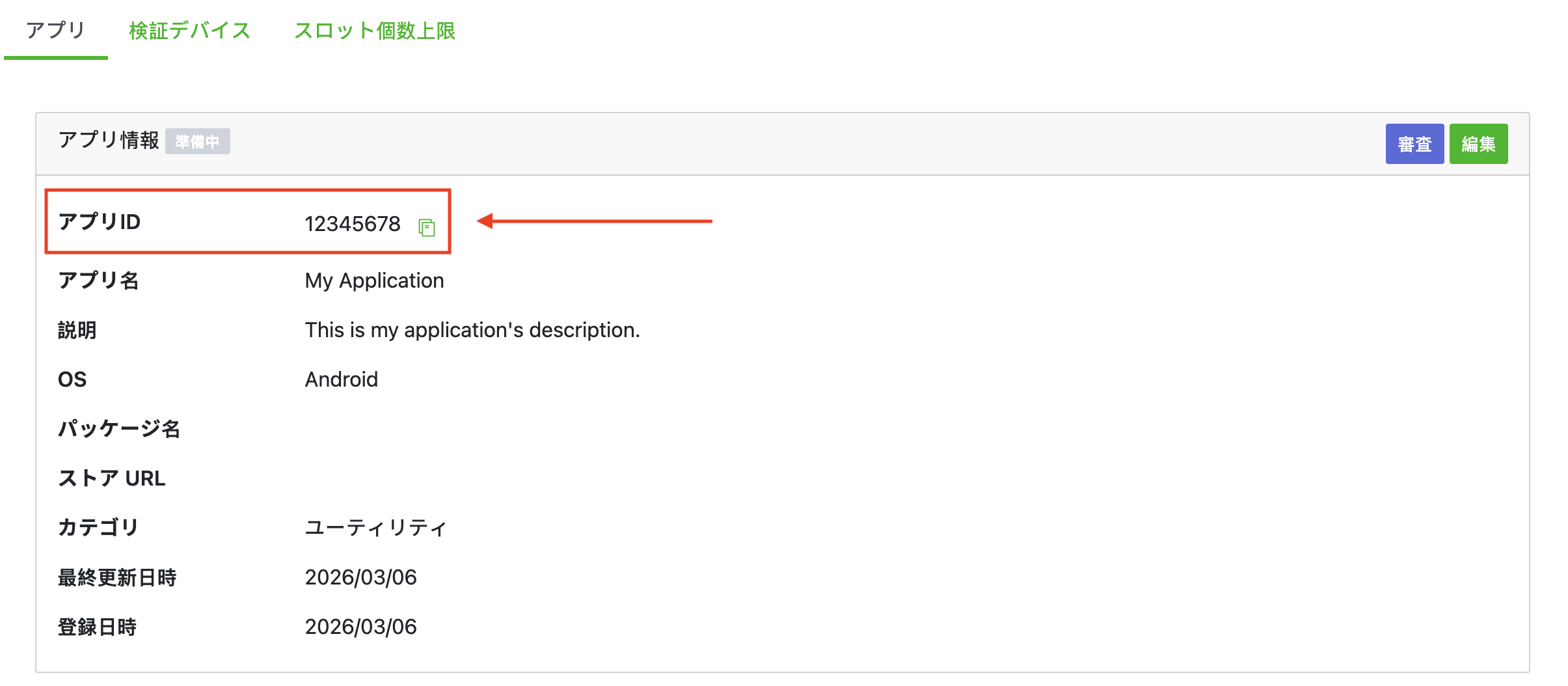

Take note of the Application ID.

Create an ad placement

Click the ID of the application you want to add an ad placement. Then, select 詳細 (Detail).

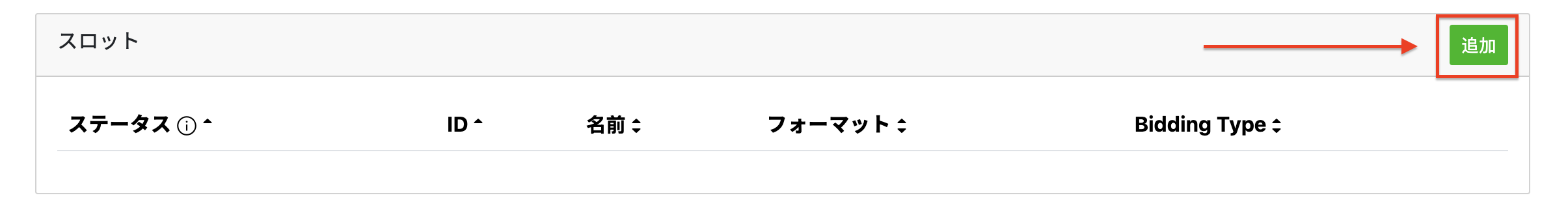

Click スロット 追加 (Add Slot).

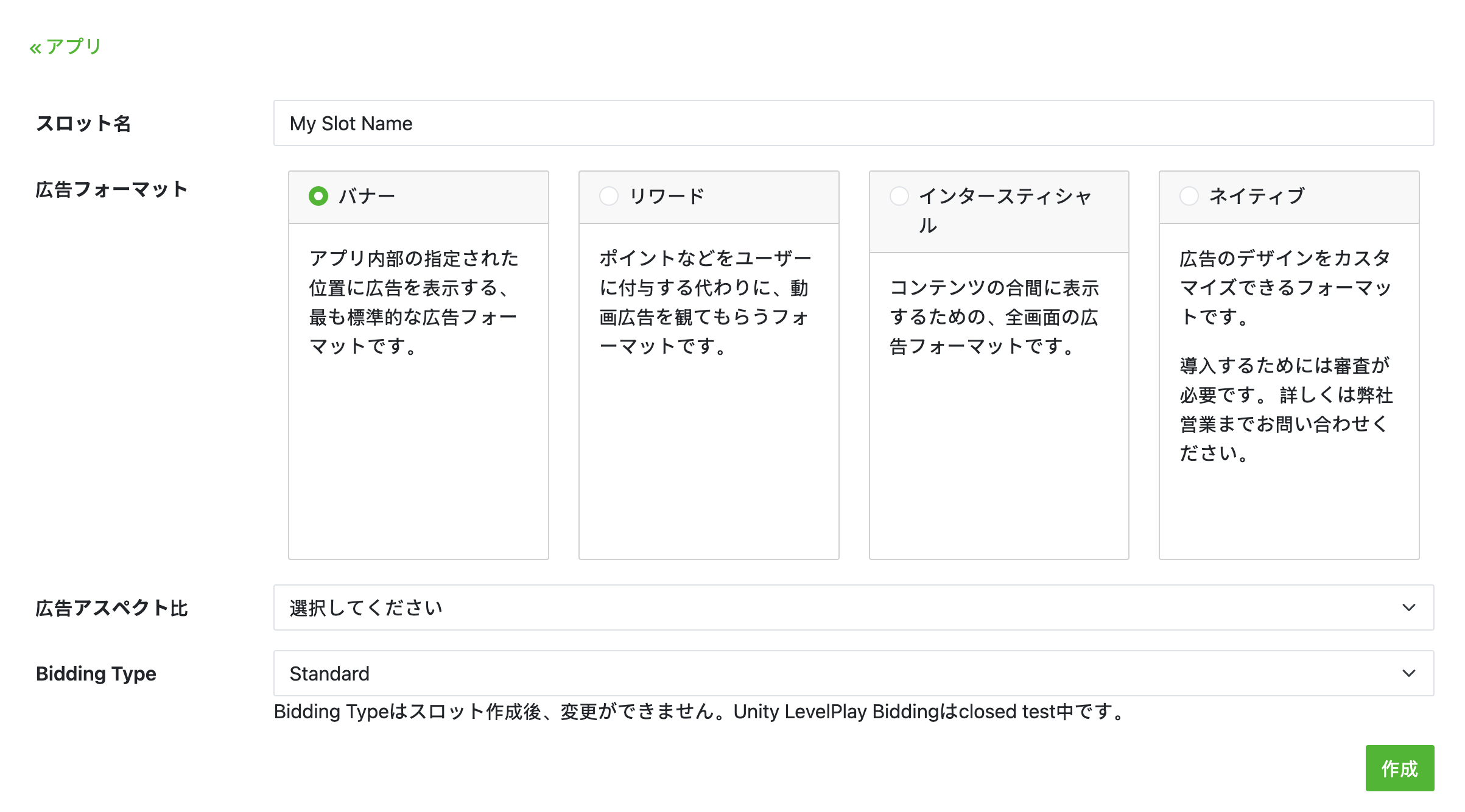

Fill out the form and once done, click (登録) Register.

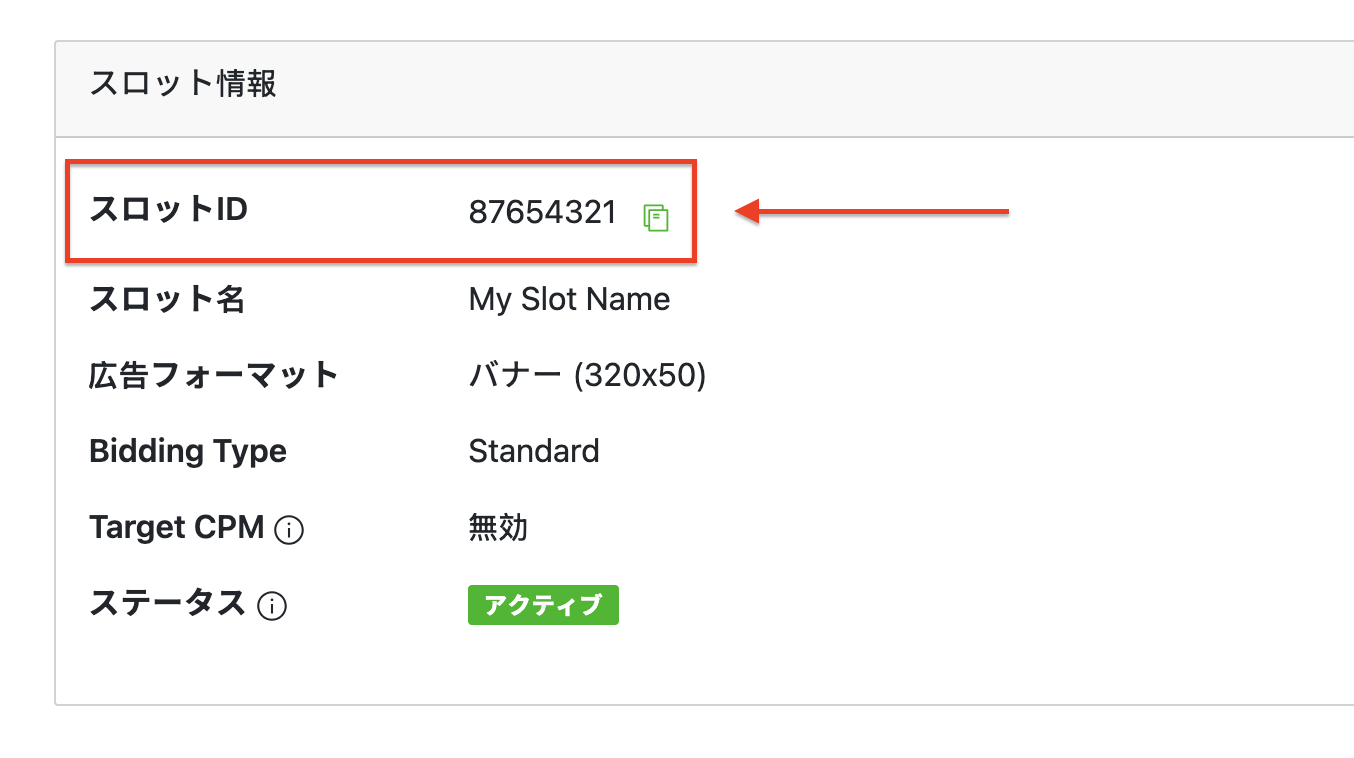

Take note of the Slot ID.

Step 2: Set up LINE Ads Network demand in AdMob UI

Configure mediation settings for your ad unit

You need to add LINE Ads Network to the mediation configuration for your ad unit.

First, sign in to your AdMob account. Next, navigate to the Mediation tab. If you have an existing mediation group you'd like to modify, click the name of that mediation group to edit it, and skip ahead to Add LINE Ads Network as an ad source.

To create a new mediation group, select Create Mediation Group.

Enter your ad format and platform, then click Continue.

Give your mediation group a name, and select locations to target. Next, set the mediation group status to Enabled, and then click Add Ad Units.

Associate this mediation group with one or more of your existing AdMob ad units. Then click Done.

You should now see the ad units card populated with the ad units you selected:

Add LINE Ads Network as an ad source

Bidding


Under the Bidding card in the Ad Sources section, select Add Ad Source. Then select LINE Ads Network .
Click How to sign a partnership agreement and set up a bidding partnership with LINE Ads Network.
Click Acknowledge & agree, then click Continue.
If you already have a mapping for LINE Ads Network, you can select it. Otherwise, click Add mapping.
Next, enter the Application ID and Slot ID obtained in the previous section. Then click Done.

Waterfall


Under the Waterfall card in the Ad Sources section, select Add Ad Source. Then select LINE Ads Network.

Select LINE Ads Network. Then enter an eCPM value for LINE Ads Network and click Continue.



If you already have a mapping for LINE Ads Network, you can select it. Otherwise, click Add mapping.

Next, enter the Application ID and Slot ID obtained in the previous section. Then click Done.


Step 3: Import the LINE Ads Network SDK and Adapter

In your app-level build.gradle.kts file, add the following implementation dependencies and configurations. Use the latest versions of the LINE Ads Network SDK and adapter:

dependencies {
    implementation("com.google.android.gms:play-services-ads:23.6.0")
    implementation("com.google.ads.mediation:line:2.9.20241129.0")
}

Manual integration

  1. Download the latest version of the LINE Ads Network SDK's .aar file and add it to your project.

  2. Navigate to the LINE Ads Network adapter artifacts on Google's Maven Repository. Select the latest version, download the LINE Ads Network adapter's .aar file, and add it to your project.

Step 4: Add required code

No additional code is required for LINE Ads Network integration.

Step 5: Test your implementation

Enable test ads

Make sure you register your test device for AdMob.

Verify test ads

To verify that you are receiving test ads from LINE Ads Network, enable single ad source testing in ad inspector using the LINE Ads Network (Waterfall) ad source(s).

Optional steps

Network-specific parameters

The LINE Ads Network adapter supports an additional request parameter which can be passed to the adapter using the LineExtras class. This class constructor includes the following parameters:

enableAdSound
A boolean to specify the default sound start state of banner, interstitial and rewarded ads.

Here's a code example of how to create an ad request that sets these parameters:

Java

LineExtras lineExtras = new LineExtras(true);
Bundle extras = lineExtras.build();

AdRequest request = new AdRequest.Builder()
   .addNetworkExtrasBundle(LineMediationAdapter.class, extras)
   .build();

Kotlin

val lineExtras = LineExtras(true)
val extras = lineExtras.build()

val request = AdRequest.Builder()
   .addNetworkExtrasBundle(LineMediationAdapter::class.java, extras)
   .build()

Using native ads

Ad rendering

The LINE Ads Network adapter populates the following Native ads advanced field descriptions for a NativeAd.

Field Assets always included by LINE Ads Network adapter
Headline
Body
App icon 1
Call to action
Star rating
Store
Price

1 For native ads, the LINE Ads Network SDK does not provide an app icon asset. Instead, the LINE Ads Network adapter populates the app icon with a transparent image.

Error codes

If the adapter fails to receive an ad from LINE Ads Network, you can check the underlying error from the ad response using ResponseInfo.getAdapterResponses() under the following classes:

com.line.ads
com.google.ads.mediation.line.LineMediationAdapter

Here are the codes and accompanying messages thrown by the LINE Ads Network adapter when an ad fails to load:

Error code Domain Reason
1-10 com.five_corp.ad LINE Ads Network SDK returned an SDK-specific error. See LINE Ads Network's documentation for more details.
101 com.google.ads.mediation.line Missing or invalid Application ID.
102 com.google.ads.mediation.line Missing or invalid Slot ID.
103 com.google.ads.mediation.line The requested ad size does not match a LINE Ads Network supported banner ad size.
104 com.google.ads.mediation.line Failed to load an interstitial or rewarded ad due to missing activity context.
105 com.google.ads.mediation.line LINE Ads Network SDK failed to show an interstitial or rewarded ad.
106 com.google.ads.mediation.line Failed to load a native ad due to missing assets.

LINE Android Mediation Adapter Changelog

Version 2.9.20241129.0

  • Added bidding support for banner, interstitial, rewarded and native ad formats.
  • Verified compatibility with FiveAd SDK version 2.9.20241129.0

Built and tested with:

  • Google Mobile Ads SDK version 23.5.0.
  • FiveAd SDK version 2.9.20241129.0

Version 2.8.20240827.0

  • Verified compatibility with FiveAd SDK version 2.8.20240827.0

Built and tested with:

  • Google Mobile Ads SDK version 23.3.0.
  • FiveAd SDK version 2.8.20240827.0

Version 2.8.20240808.0

  • Verified compatibility with FiveAd SDK version 2.8.20240808.0

Built and tested with:

  • Google Mobile Ads SDK version 23.2.0.
  • FiveAd SDK version 2.8.20240808.0

Version 2.8.20240722.0

  • Verified compatibility with FiveAd SDK version 2.8.20240722.0

Built and tested with:

  • Google Mobile Ads SDK version 23.2.0.
  • FiveAd SDK version 2.8.20240722.0

Version 2.7.20240515.0

  • Verified compatibility with FiveAd SDK version 2.7.20240515.0

Built and tested with:

  • Google Mobile Ads SDK version 23.1.0.
  • FiveAd SDK version 2.7.20240515.0

Version 2.7.20240214.1

  • Updated the minimum required Google Mobile Ads SDK version to 23.0.0.
  • Verified compatibility with FiveAd SDK version 2.7.20240214.0.

Built and tested with:

  • Google Mobile Ads SDK version 23.0.0.
  • FiveAd SDK version 2.7.20240214.0.

Version 2.7.20240214.0

  • Verified compatibility with FiveAd SDK version 2.7.20240214.0.

Built and tested with:

  • Google Mobile Ads SDK version 22.6.0.
  • FiveAd SDK version 2.7.20240214.0.

Version 2.7.20240126.0

  • Verified compatibility with FiveAd SDK version 2.7.20240126.0.

Built and tested with:

  • Google Mobile Ads SDK version 22.6.0.
  • FiveAd SDK version 2.7.20240126.0.

Version 2.7.20240112.0

  • Removed deprecated FiveAdViewEventListener in favor of FiveAdCustomLayoutEventListener, FiveAdVideoRewardEventListener, FiveAdInterstitialEventListener and FiveAdNativeEventListener.
  • Verified compatibility with FiveAd SDK version 2.7.20240112.
  • Updated the minimum required Google Mobile Ads SDK version to 22.6.0.

Built and tested with:

  • Google Mobile Ads SDK version 22.6.0.
  • FiveAd SDK version 2.7.20240112.

Version 2.6.20230607.1

  • Added LineExtras class for publishers to define default sound settings for banner, interstitial and rewarded ad formats.
  • Updated the minimum required Google Mobile Ads SDK version to 22.4.0.

Built and tested with:

  • Google Mobile Ads SDK version 22.4.0.
  • FiveAd SDK version 2.6.20230607.

Version 2.6.20230607.0

  • Initial release.
  • Adds support for banner, interstitial, rewarded and native ad formats.
  • Verified compatibility with FiveAd SDK version 2.6.20230607.

Built and tested with:

  • Google Mobile Ads SDK version 22.1.0.
  • FiveAd SDK version 2.6.20230607.
