应用体验
使用集合让一切井井有条
根据您的偏好保存内容并对其进行分类。
纵向参考设计中的应用体验分为 2 个层级。
这两个层都允许用户与这两个层上的应用交互:
为了获得最佳的多任务处理体验,建议让基本层运行导航应用,而顶层使用系统应用模板运行其他类型的应用。
基本层
基础层几乎涵盖了整个车载屏幕。
它可以同时运行多个应用,但用户只能看到其中一个应用。用户可以使用该应用的所有标准控件。
如需了解如何实现和自定义基础层,请参阅基础层最佳实践和基础层自定义。
基础层最佳实践
面向 OEM 的最佳实践:
- 在基础层和顶层运行单独的应用:请勿在这两个层上同时运行同一应用。
- 在基础层运行导航应用:由于驾驶员在汽车行程中最常引用导航应用,因此请使用基础层确保导航应用始终可用。通过提供媒体控件的控制栏,驾驶员可以在车载显示屏上获得最佳媒体和导航体验。
顶层
顶层可以运行任何类型的应用,包括手机应用(例如拨号器)和提供内容(例如音乐、播客、电台或蓝牙音频)的媒体应用。这些应用在系统应用模板中运行。此外,您还可以通过应用启动器和控制栏访问媒体内容。
当顶层应用打开时,基础层应用会对屏幕空间调整做出响应。也就是说,基础层通过缩小自己的屏幕区域来响应顶层应用在屏幕上的展开。

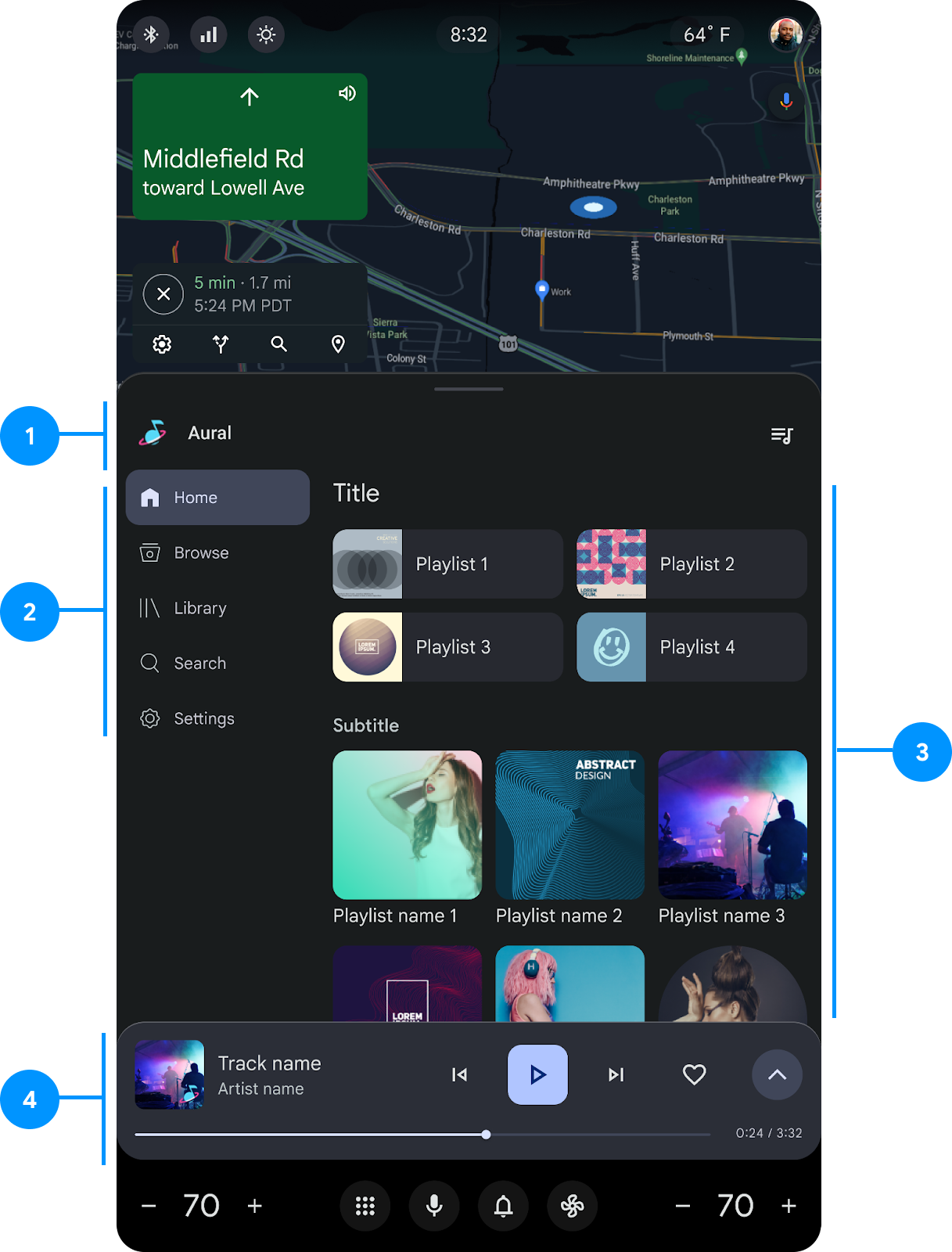

系统应用模板
系统应用模板有助于在整个信息娱乐系统中打造一致的用户体验。这些设置适用于设置、媒体和手机应用。该模板包含以下内容:
- 顶部的应用标头
- 位于驾驶员可接触到左侧的垂直应用菜单
- 应用正文内容区域
- 某些应用控件栏中的持续性控件
