This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using AdMob Mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an iOS app.
Supported integrations and ad formats
The mediation adapter for Pangle has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | |
Formats | |
App open | 1 |
Banner | |
Interstitial | |
Rewarded | |
Rewarded Interstitial | |
Native |
Requirements
- iOS deployment target of 10.0 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Pangle UI
새 애플리케이션 추가
Applications(애플리케이션) 탭으로 이동하고 Add App(앱 추가) 버튼을 클릭합니다.
애플리케이션을 만들려는 운영체제를 선택하고 양식의 나머지 부분을 작성합니다. 그런 다음 제출을 클릭합니다.
애플리케이션의 앱 ID를 기록해 둡니다.
광고 게재위치 만들기
애플리케이션을 만들었으면 추가 버튼을 클릭하여 광고 게재위치를 만듭니다.
입찰
광고 형식과 광고 게재위치 이름을 선택하고 가격 책정 유형으로 인앱 입찰을 선택합니다. 양식의 나머지 부분을 작성하고 제출을 클릭합니다.
광고 게재위치를 만들었으면 광고 게재위치 ID를 기록해 둡니다.
폭포
광고 형식과 광고 게재위치 이름을 선택하고, 가격 책정 유형으로 글로벌 CPM을 선택합니다. 양식의 나머지 부분을 작성하고 제출을 클릭합니다.
광고 게재위치를 만들었으면 광고 게재위치 ID를 기록해 둡니다.
Pangle Reporting API 키 찾기
입찰
이 단계는 입찰 통합에는 필요하지 않습니다.
폭포
페이지 왼쪽 하단에 있는 User ID를 메모합니다.
통합 > SDK 및 API > Pangle Reporting API 2.0을 클릭합니다. 역할 ID 및 보안 키를 기록해 둡니다.
테스트 모드 사용 설정
Pangle 테스트 광고를 사용 설정하는 방법은 Pangle의 테스트 광고 추가 방법 가이드에 있는 안내를 따릅니다.
Step 2: Set up Pangle demand in AdMob UI
광고 단위에 대한 미디에이션 설정 구성
Pangle 를 광고 단위의 미디에이션 구성에 추가해야 합니다.
먼저 AdMob 계정에 로그인합니다. 그런 다음 미디에이션 탭으로 이동합니다. 수정할 기존 미디에이션 그룹이 있는 경우 해당 미디에이션 그룹의 이름을 클릭하여 수정한 후 Pangle 광고 소스로 추가로 건너뜁니다.
새 미디에이션 그룹을 만들려면 미디에이션 그룹 만들기를 선택합니다.
광고 형식과 플랫폼을 입력하고 계속을 클릭합니다.
미디에이션 그룹에 이름을 지정하고 타겟팅할 위치를 선택합니다. 미디에이션 그룹 상태를 사용으로 설정한 다음 광고 단위 추가를 클릭합니다.
이 미디에이션 그룹을 하나 이상의 기존AdMob 광고 단위와 연결합니다. 그런 다음 완료를 클릭합니다.
이제 광고 단위 카드가 선택한 광고 단위로 채워진 것을 볼 수 있습니다.
광고 소스로 Pangle 추가
입찰
광고 소스 섹션의 입찰 카드에서 광고 소스 추가를 선택합니다. 그런 다음 Pangle을 선택합니다.
파트너십 계약을 체결하는 방법을 클릭하고Pangle과(와) 입찰 파트너십을 설정합니다.
확인 및 동의를 클릭한 다음 계속을 클릭합니다.

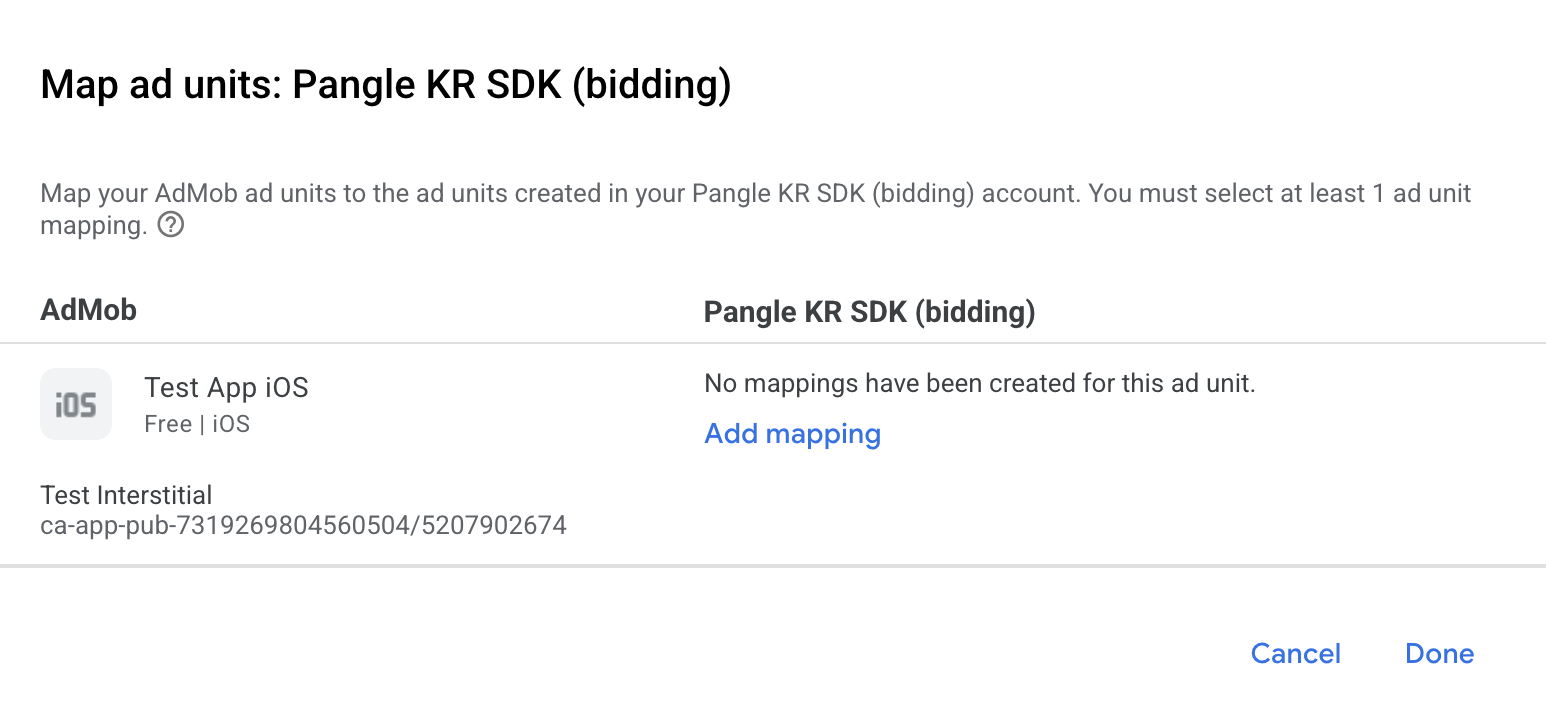

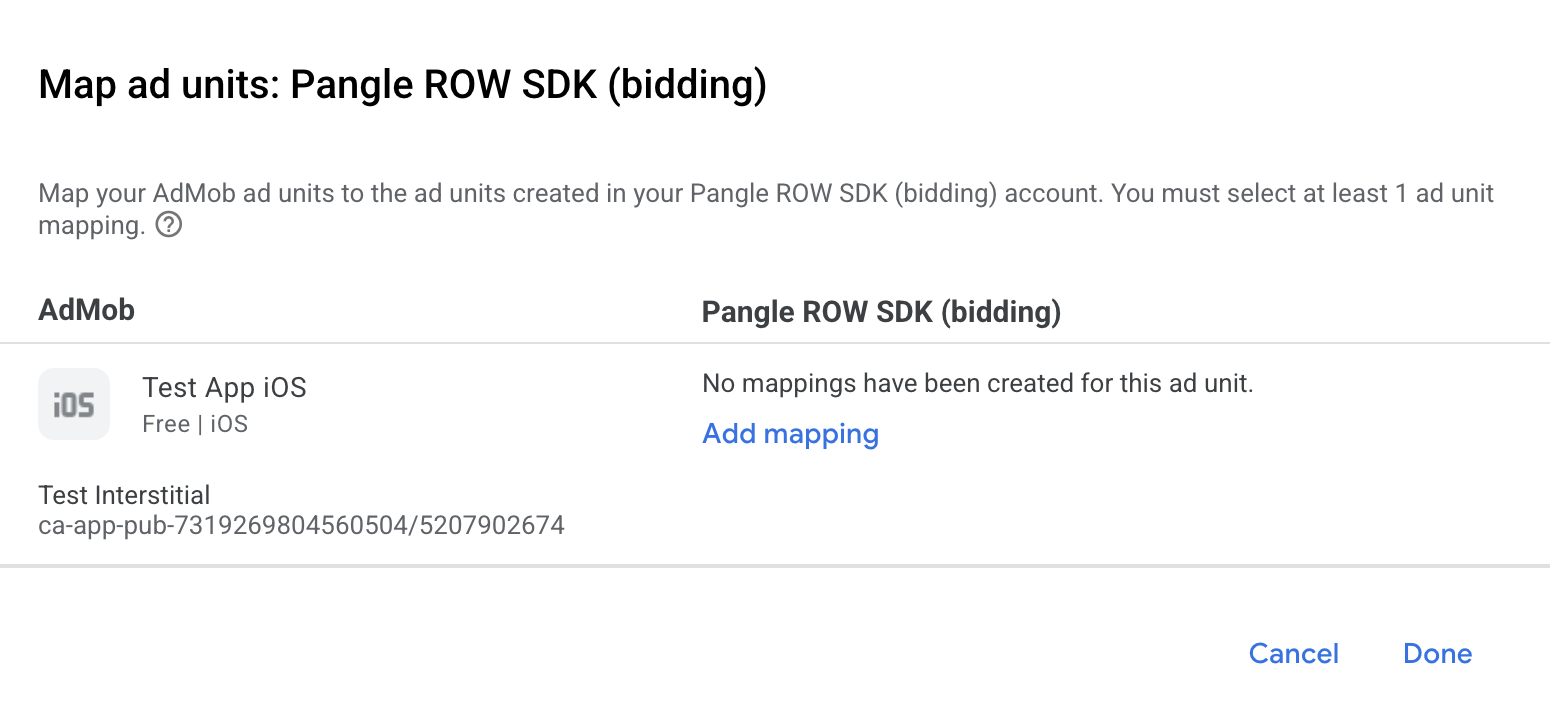

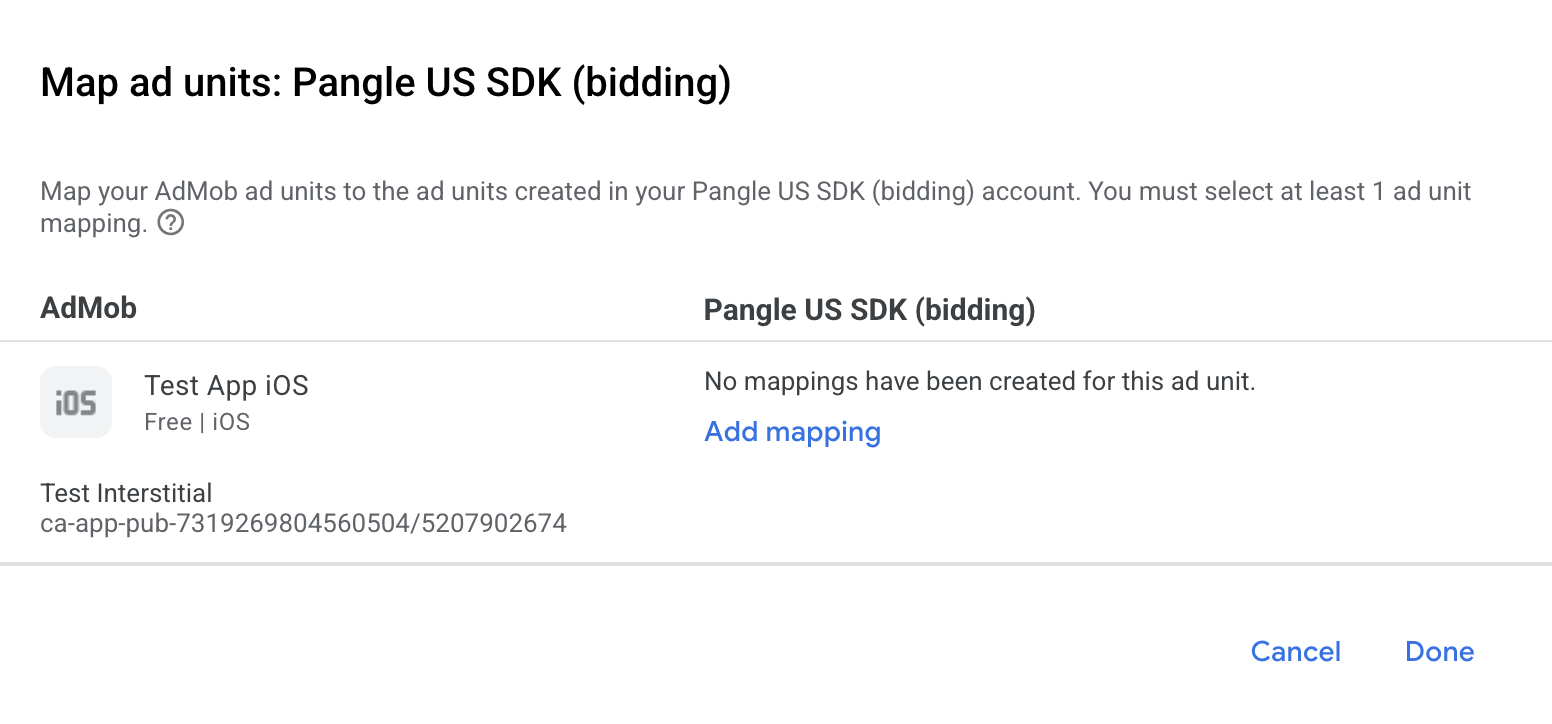

이미 Pangle에 대한 매핑이 있는 경우 해당 매핑을 선택할 수 있습니다. 그렇지 않으면 매핑 추가를 클릭합니다.

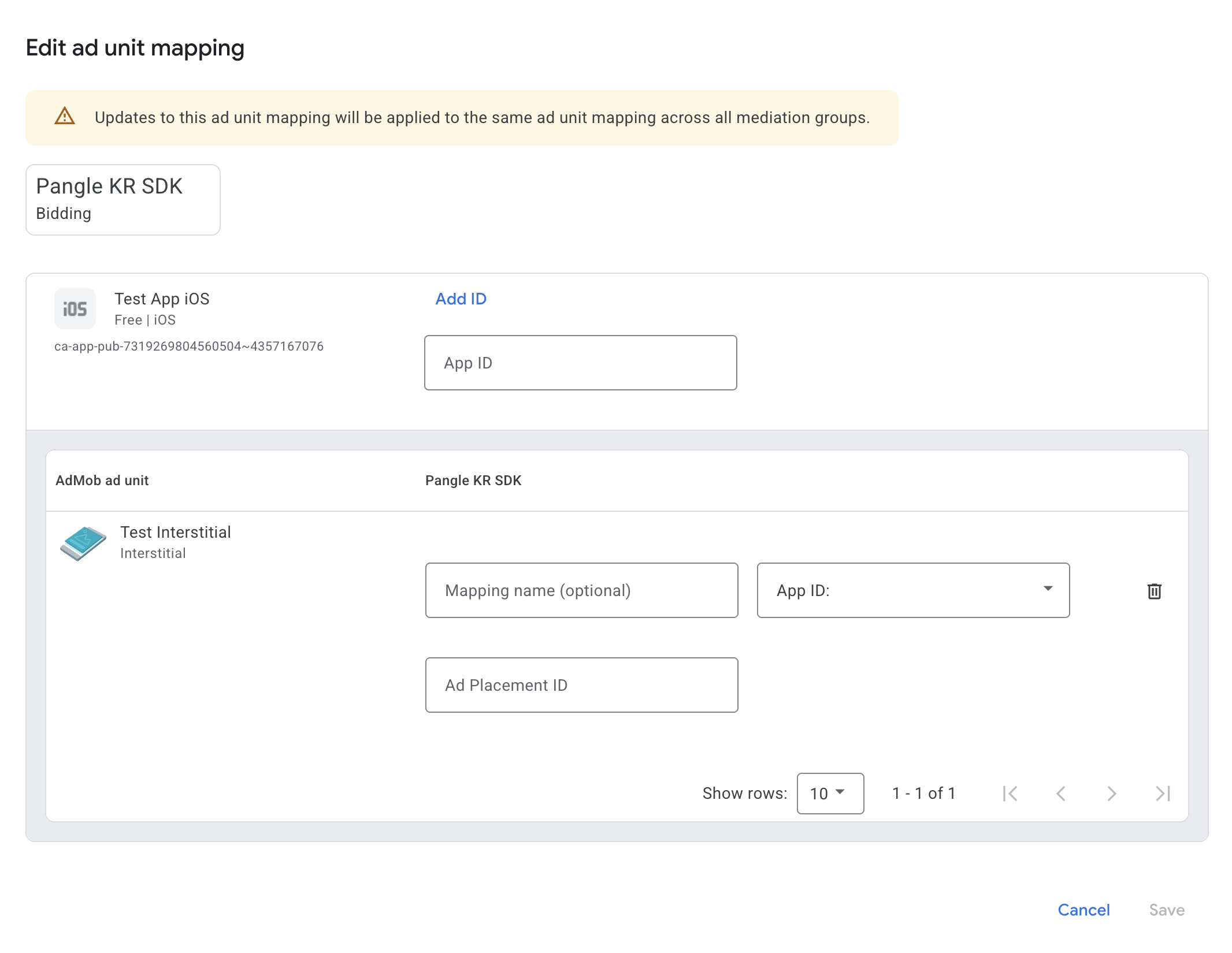

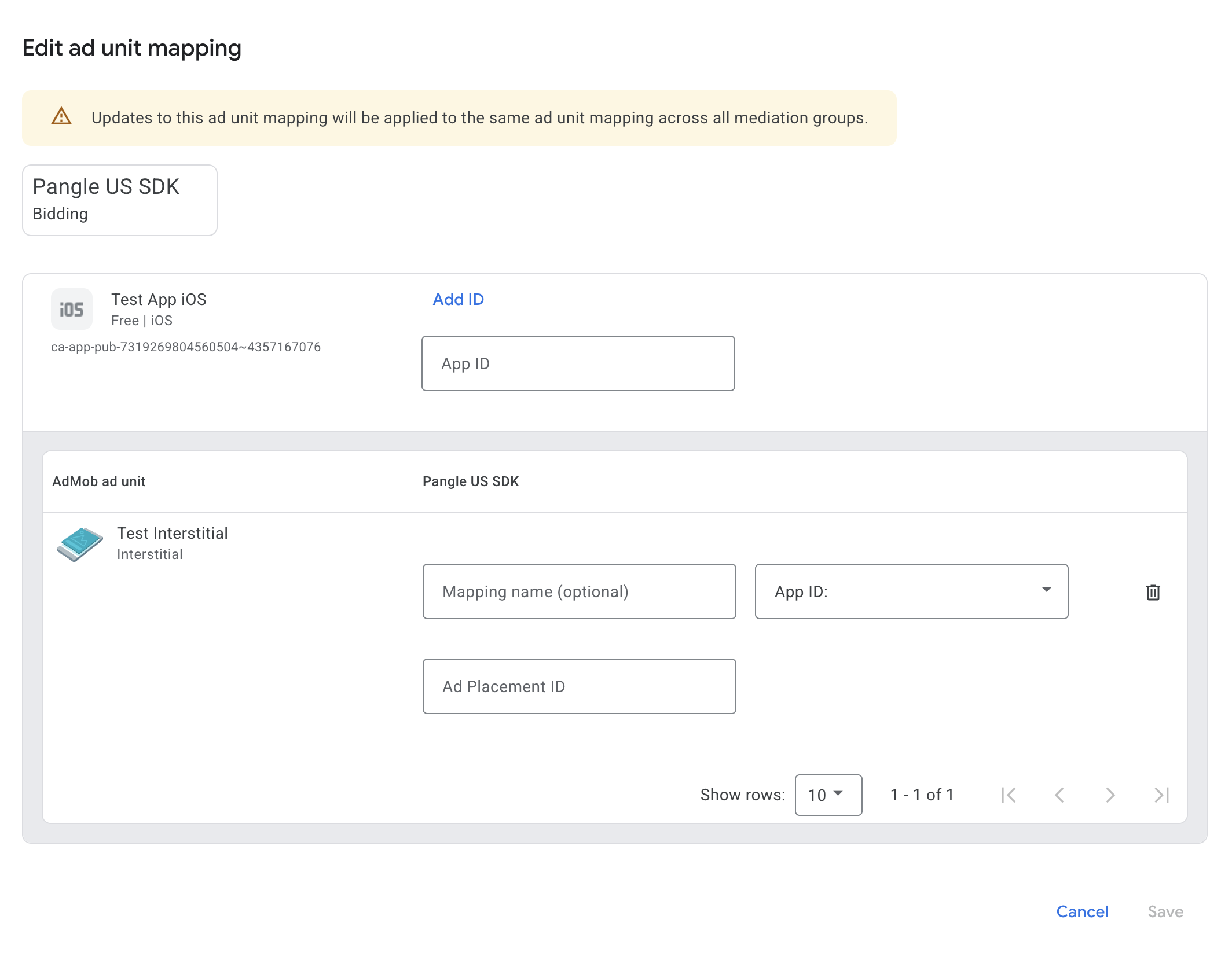

그런 다음 이전 섹션에서 얻은 App ID and Ad Placement ID를 입력합니다. 그런 다음 완료를 클릭합니다.
중요: App ID 는Pangle UI에서와 같이 타겟팅된 앱과 연결되어야 합니다.폭포
광고 소스 섹션의 폭포식 구조 카드에서 광고 소스 추가를 선택합니다. 그런 다음 Pangle을 선택합니다.
Pangle를 선택합니다. 그런 다음Pangle 에 eCPM 값을 입력하고 계속을 클릭합니다.이미 Pangle에 대한 매핑이 있는 경우 해당 매핑을 선택할 수 있습니다. 그렇지 않으면 매핑 추가를 클릭합니다.
그런 다음 이전 섹션에서 얻은 App ID and Ad Placement ID를 입력합니다. 그런 다음 완료를 클릭합니다.
Step 3: Import the Pangle SDK and adapter
Using CocoaPods (recommended)
Add the following line to your project's Podfile:
pod 'GoogleMobileAdsMediationPangle'
From the command line run:
pod install --repo-update
Manual integration
- Download the latest version of the
Pangle SDK for iOS
and link all the
.framework
files and bundles in your project. - Download the latest version of the Pangle adapter from the download link in
the Changelog and link
PangleAdapter.xcframework
in your project.
Step 4: Add required code
SKAdNetwork integration
Follow Pangle's documentation
to add the SKAdNetwork identifiers to your project's Info.plist
file.
Step 5: Test your implementation
테스트 광고 사용 설정
AdMob 용 테스트 기기를 등록하고 Pangle UI에서 테스트 모드를 사용 설정해야 합니다.
테스트 광고 확인
Pangle에서 테스트 광고를 수신하고 있는지 확인하려면 광고 검사기에서 Pangle (Bidding) and Pangle (Waterfall) 광고 소스를 사용하여 단일 광고 소스 테스트를 사용 설정하세요.
Optional Steps
Native ads
Ad rendering
The Pangle adapter returns its native ads as
GADNativeAd
objects. It populates the following
fields
for a
GADNativeAd
.
Field | Assets always included by Pangle adapter |
---|---|
Headline | |
Image | 1 |
Body | |
Icon | |
Call to action | |
Star rating | |
Store | |
Price | |
Advertiser |
1 The Pangle adapter does not
provide direct access to the main image asset for its native ads. Instead, the
adapter populates the
GADMediaView
with a video or an image.
Error codes
If the adapter fails to receive an ad from Pangle, you can check the
underlying error from the ad response using
GADResponseInfo.adNetworkInfoArray
under the following classes:
GADMediationAdapterPangle
Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
101 | com.google.ads.mediation.pangle | Invalid server parameters (e.g. Missing app ID or placement ID). |
102 | com.google.ads.mediation.pangle | The requested ad size does not match a Pangle supported banner size. |
-1-60000 | Sent by Pangle SDK | Pangle SDK returned an error. See Pangle's documentation for more details. |
Pangle iOS Mediation Adapter Changelog
Version 6.1.0.5.0
- Verified compatibility with Pangle SDK version 6.1.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.5.
Version 6.1.0.4.0
- Verified compatibility with Pangle SDK version 6.1.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.4.
Version 6.0.0.6.0
- Verified compatibility with Pangle SDK version 6.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.0.0.6.
Version 6.0.0.5.0
- Verified compatibility with Pangle SDK version 6.0.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.5.
Version 6.0.0.4.0
- Verified compatibility with Pangle SDK version 6.0.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.4.
Version 5.9.0.9.0
- Verified compatibility with Pangle SDK version 5.9.0.9.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 5.9.0.9.
Version 5.9.0.8.0
- Verified compatibility with Pangle SDK version 5.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 11.4.0.
- Pangle SDK version 5.9.0.8.
Version 5.9.0.7.0
- Verified compatibility with Pangle SDK version 5.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 11.3.0.
- Pangle SDK version 5.9.0.7.
Version 5.8.0.8.0
- Verified compatibility with Pangle SDK version 5.8.0.8.
- Updated adapter to use new Pangle SDK signal collection API.
Built and tested with:
- Google Mobile Ads SDK version 11.2.0.
- Pangle SDK version 5.8.0.8.
Version 5.8.0.7.0
- Verified compatibility with Pangle SDK version 5.8.0.7.
- Now requires minimum iOS version 12.0.
- Now requires Google Mobile Ads SDK version 11.0 or higher.
- Included
Info.plist
in the frameworks withinPangleAdapter.xcframework
.
Built and tested with:
- Google Mobile Ads SDK version 11.0.1.
- Pangle SDK version 5.8.0.7.
Version 5.7.0.7.0
- Verified compatibility with Pangle SDK version 5.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.7.
Version 5.7.0.6.0
- Verified compatibility with Pangle SDK version 5.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.6.
Version 5.6.0.8.0
- Verified compatibility with Pangle SDK version 5.6.0.8.
- Refactored the
+setCOPPA
method by replacing the deprecatedadConfiguration.childDirectedTreatment
property with the newGADMobileAds.sharedInstance.requestConfiguration.tagForChildDirectedTreatment
property.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.6.0.8.
Version 5.5.0.9.0
- Verified compatibility with Pangle SDK version 5.5.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.13.0.
- Pangle SDK version 5.5.0.9.
Version 5.5.0.7.0
- Verified compatibility with Pangle SDK version 5.5.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.12.0.
- Pangle SDK version 5.5.0.7.
Version 5.5.0.5.0
- Verified compatibility with Pangle SDK version 5.5.0.5.
Built and tested with:
- Google Mobile Ads SDK version 10.11.0.
- Pangle SDK version 5.5.0.5.
Version 5.4.1.1.0
- Added bidding support for app open ad format.
- Verified compatibility with Pangle SDK version 5.4.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.10.0.
- Pangle SDK version 5.4.1.1.
Version 5.4.0.9.0
- Verified compatibility with Pangle SDK version 5.4.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.9.
Version 5.4.0.8.0
- Fixed an issue where
GADPangleNetworkExtras
did not conform toGADAdNetworkExtras
protocol. - Implemented
adDidShowFail
protocol method in interstitial, rewarded, and app open ads. - Verified compatibility with Pangle SDK version 5.4.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.8.
Version 5.3.1.2.0
- Verified compatibility with Pangle SDK version 5.3.1.2.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.2.
Version 5.3.1.0.0
- Verified compatibility with Pangle SDK version 5.3.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.0.
Version 5.2.1.1.0
- Verified compatibility with Pangle SDK version 5.2.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.7.0.
- Pangle SDK version 5.2.1.1.
Version 5.2.0.9.0
- Verified compatibility with Pangle SDK version 5.2.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.9.
Version 5.2.0.8.0
- Verified compatibility with Pangle SDK version 5.2.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.8.
Version 5.2.0.7.0
- Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
- Verified compatibility with Pangle SDK version 5.2.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.7.
Version 5.2.0.6.0
- Verified compatibility with Pangle SDK version 5.2.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.6.
Version 5.1.1.0.0
- Verified compatibility with Pangle SDK version 5.1.1.0.
- Added support for the
arm64
simulator architecture. - Now requires Google Mobile Ads SDK version 10.4.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.4.0.
- Pangle SDK version 5.1.1.0.
Version 5.1.0.6.0
- Verified compatibility with Pangle SDK version 5.1.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.3.0.
- Pangle SDK version 5.1.0.6.
Version 5.0.1.0.0
- Verified compatibility with Pangle SDK version 5.0.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.1.0.
Version 5.0.0.8.0
- Verified compatibility with Pangle SDK version 5.0.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.0.8.
Version 5.0.0.7.0
- Verified compatibility with Pangle SDK version 5.0.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.7.
Version 5.0.0.6.0
- Verified compatibility with Pangle SDK version 5.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.6.
Version 4.9.1.0.0
- Removed support for the
armv7
architecture. - Verified compatibility with Pangle SDK version 4.9.1.0.
- Now requires minimum iOS version of 12.0.
- Now requires Google Mobile Ads SDK version 10.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.0.0.
- Pangle SDK version 4.9.1.0.
Version 4.9.0.8.0
- Verified compatibility with Pangle SDK version 4.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.8.
Version 4.9.0.7.0
- Verified compatibility with Pangle SDK version 4.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.7.
Version 4.9.0.6.0
- Verified compatibility with Pangle SDK version 4.9.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.6.
Version 4.8.1.0.0
- Verified compatibility with Pangle SDK version 4.8.1.0.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.8.1.0.
Version 4.8.0.9.0
- Verified compatibility with Pangle SDK version 4.8.0.9.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.9.
Version 4.8.0.7.0
- Verified compatibility with Pangle SDK version 4.8.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.7.
Version 4.8.0.6.0
- Verified compatibility with Pangle SDK version 4.8.0.6.
- Fixed an issue where the main thread was blocked when loading native ad icon image.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.6.
Version 4.7.0.7.0
- Verified compatibility with Pangle SDK version 4.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.7.
Version 4.7.0.6.0
- Verified compatibility with Pangle SDK version 4.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.6.
Version 4.7.0.5.0
- Verified compatibility with Pangle SDK version 4.7.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.5.
Version 4.7.0.4.0
- Verified compatibility with Pangle SDK version 4.7.0.4.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.7.0.4.
Version 4.6.2.2.0
- Renamed the
setGDPR()
andsetCCPA()
methods from theGADMediationAdapterPangle
class tosetGDPRConsent()
andsetDoNotSell
respectively. - Verified compatibility with Pangle SDK version 4.6.2.2.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.6.2.2.
Version 4.6.1.8.0
- Verified compatibility with Pangle SDK version 4.6.1.8.
- Added bidding support for native ad format.
- Updated the adapter to use the
didRewardUser
API. - Now requires Google Mobile Ads SDK version 9.8.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 9.9.0.
- Pangle SDK version 4.6.1.8.
Version 4.5.2.8.0
- Verified compatibility with Pangle SDK version 4.5.2.8.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.8.
Version 4.5.2.7.0
- Verified compatibility with Pangle SDK version 4.5.2.7.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.7.
Version 4.5.2.5.0
- Verified compatibility with Pangle SDK version 4.5.2.5.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.5.
Version 4.5.2.4.0
- Verified compatibility with Pangle SDK version 4.5.2.4.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.4.
Version 4.5.2.3.0
- Verified compatibility with Pangle SDK version 4.5.2.3.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.3.
Version 4.5.1.3.0
- Verified compatibility with Pangle SDK version 4.5.1.3.
Built and tested with:
- Google Mobile Ads SDK version 9.5.0.
- Pangle SDK version 4.5.1.3.
Version 4.3.1.9.0
- Verified compatibility with Pangle SDK version 4.3.1.9.
Built and tested with:
- Google Mobile Ads SDK version 9.3.0.
- Pangle SDK version 4.3.1.9.
Version 4.3.0.5.0
- Verified compatibility with Pangle SDK version 4.3.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.2.0.
- Pangle SDK version 4.3.0.5.
Version 4.3.0.4.0
- Initial release!
- Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.
Built and tested with:
- Google Mobile Ads SDK version 9.1.0.
- Pangle SDK version 4.3.0.4.
