This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using AdMob Mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an iOS app.
Supported integrations and ad formats
The mediation adapter for Pangle has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | |
Formats | |
App open | 1 |
Banner | |
Interstitial | |
Rewarded | |
Rewarded Interstitial | |
Native |
Requirements
- iOS deployment target of 10.0 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Pangle UI
添加新应用
转到 Applications(应用)标签页,然后点击 Add App(添加应用)按钮。
选择要为其创建应用的操作系统,并填写表单的其余部分。然后点击提交。
记下您应用的应用 ID。
创建广告展示位置
创建应用后,点击添加按钮创建广告展示位置。
出价
选择广告格式和广告展示位置名称,然后选择应用内出价作为定价类型。填写表单的其余部分,然后点击提交。
创建广告展示位置后,请记下广告展示位置 ID。
瀑布
选择广告格式和广告展示位置名称,然后选择全局每千次展示费用作为定价类型。填写表单的其余部分,然后点击提交。
创建广告展示位置后,请记下广告展示位置 ID。
找到 Pangle Reporting API 密钥
出价
出价集成不需要执行此步骤。
瀑布
记下页面左下角的 User ID。
依次点击集成 > SDK 和 API > Pangle Reporting API 2.0。记下角色 ID 和安全密钥。
开启测试模式
请按照 Pangle 的如何添加测试广告指南中的说明启用 Pangle 测试广告。
Step 2: Set up Pangle demand in AdMob UI
为广告单元配置中介设置
您需要将 Pangle 添加到广告单元的中介配置。
首先,登录您的 AdMob 帐号。接下来,前往中介标签页。如果您想修改现有的中介组,请点击该中介组的名称进行修改,然后直接跳转到添加 Pangle 作为广告来源。
要创建新的中介组,请选择创建中介组。
输入您的广告格式和平台,然后点击继续。
为中介组命名,然后选择要定位到的地理位置。接下来,将中介组的状态设置为已启用,然后点击添加广告单元。
将此中介组与您的一个或多个现有AdMob 广告单元相关联。接着,点击完成。
现在,您应该会看到广告单元卡片内填充了您选择的广告单元:
添加为广告来源 Pangle
出价
在广告来源部分的出价卡片下,选择添加广告来源。然后选择 Pangle。
点击如何签署合作伙伴协议,然后与Pangle设置出价合作伙伴关系。
点击确认并同意,然后点击继续。

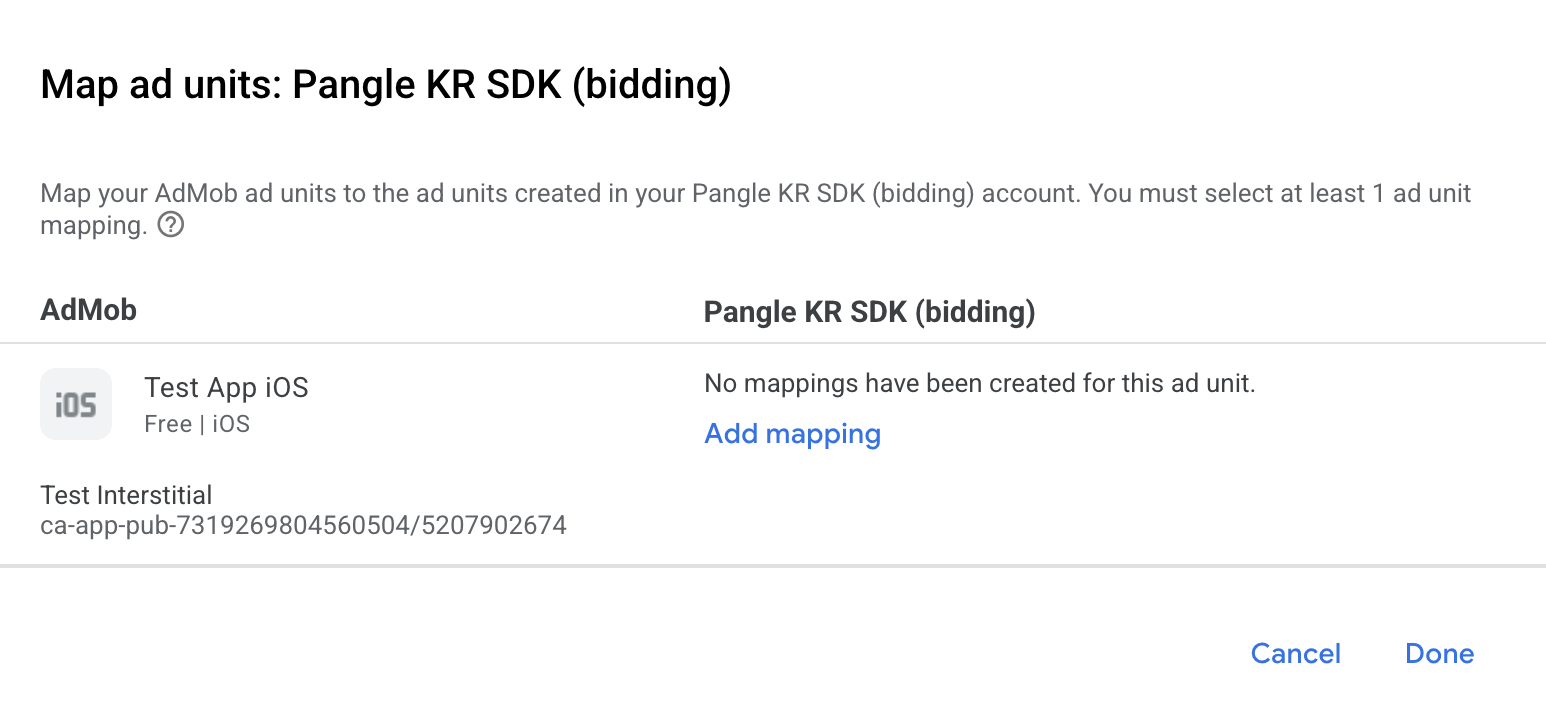

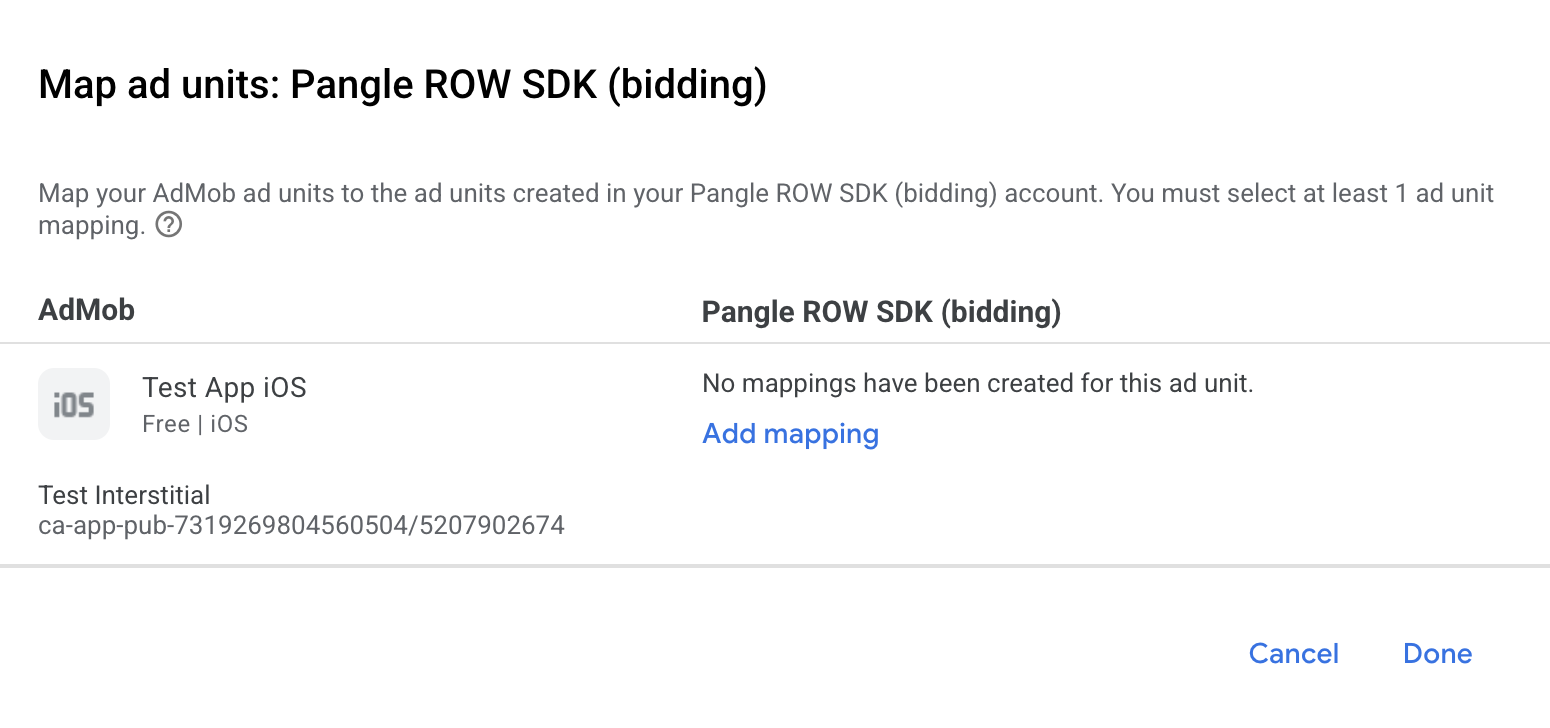

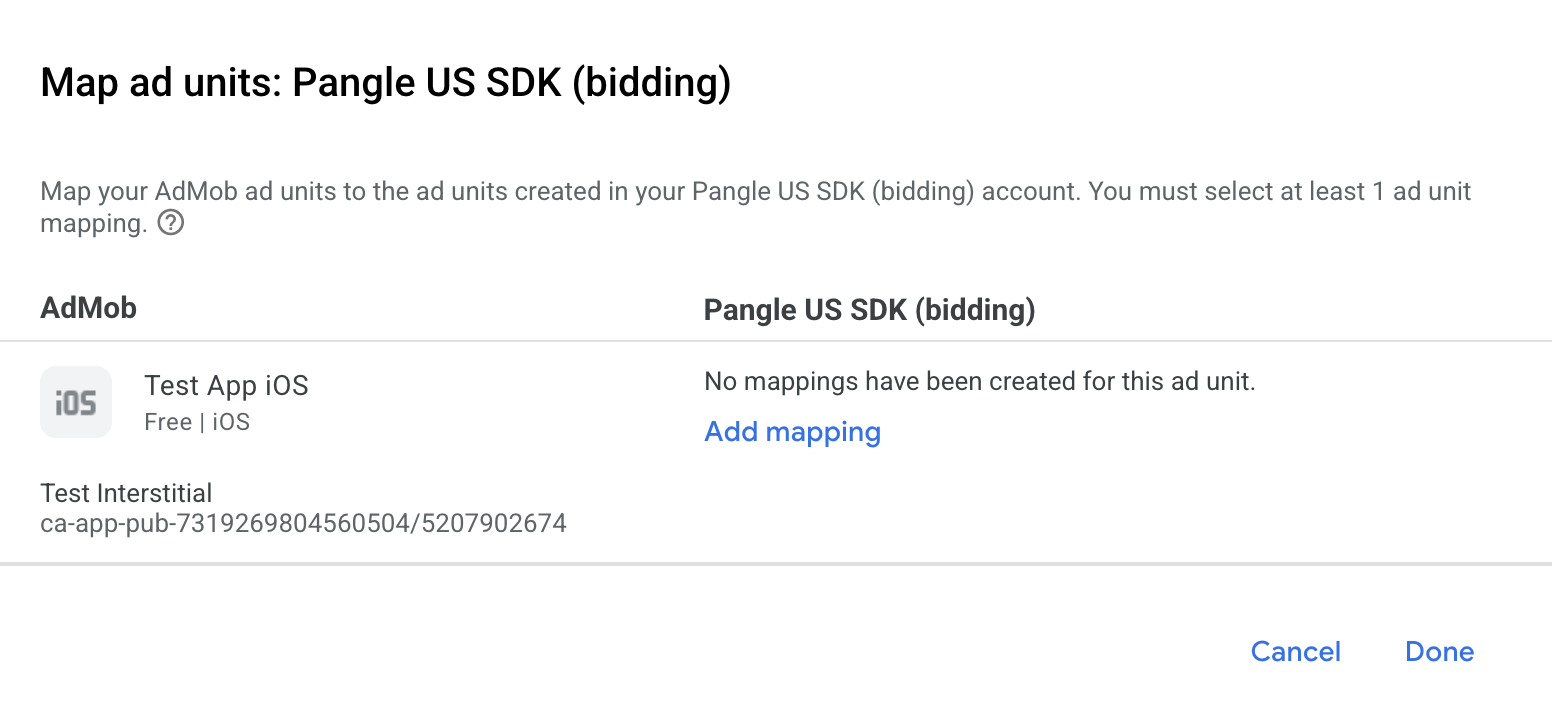

如果您已有 Pangle的映射,则可以选择它。否则,请点击添加映射。

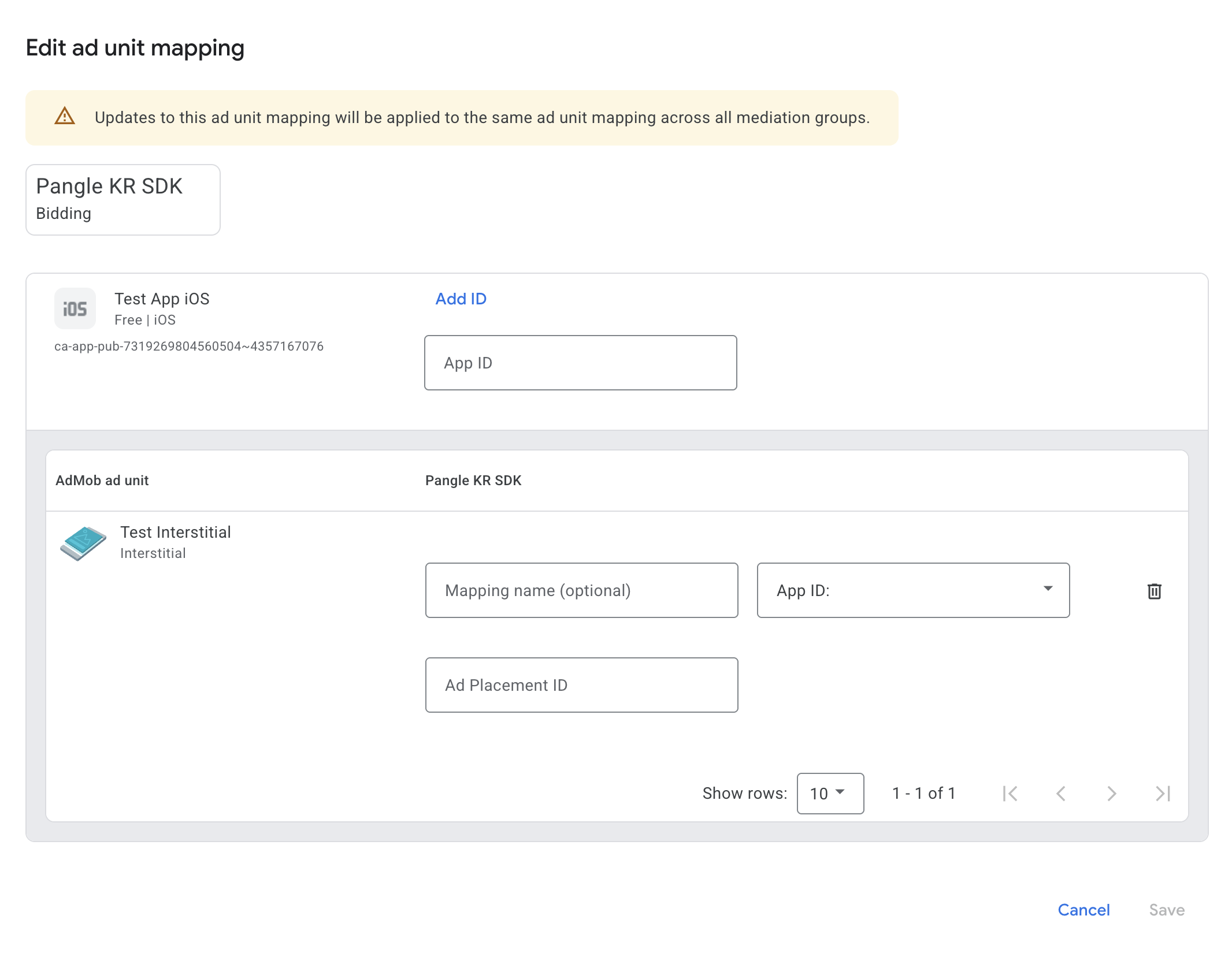

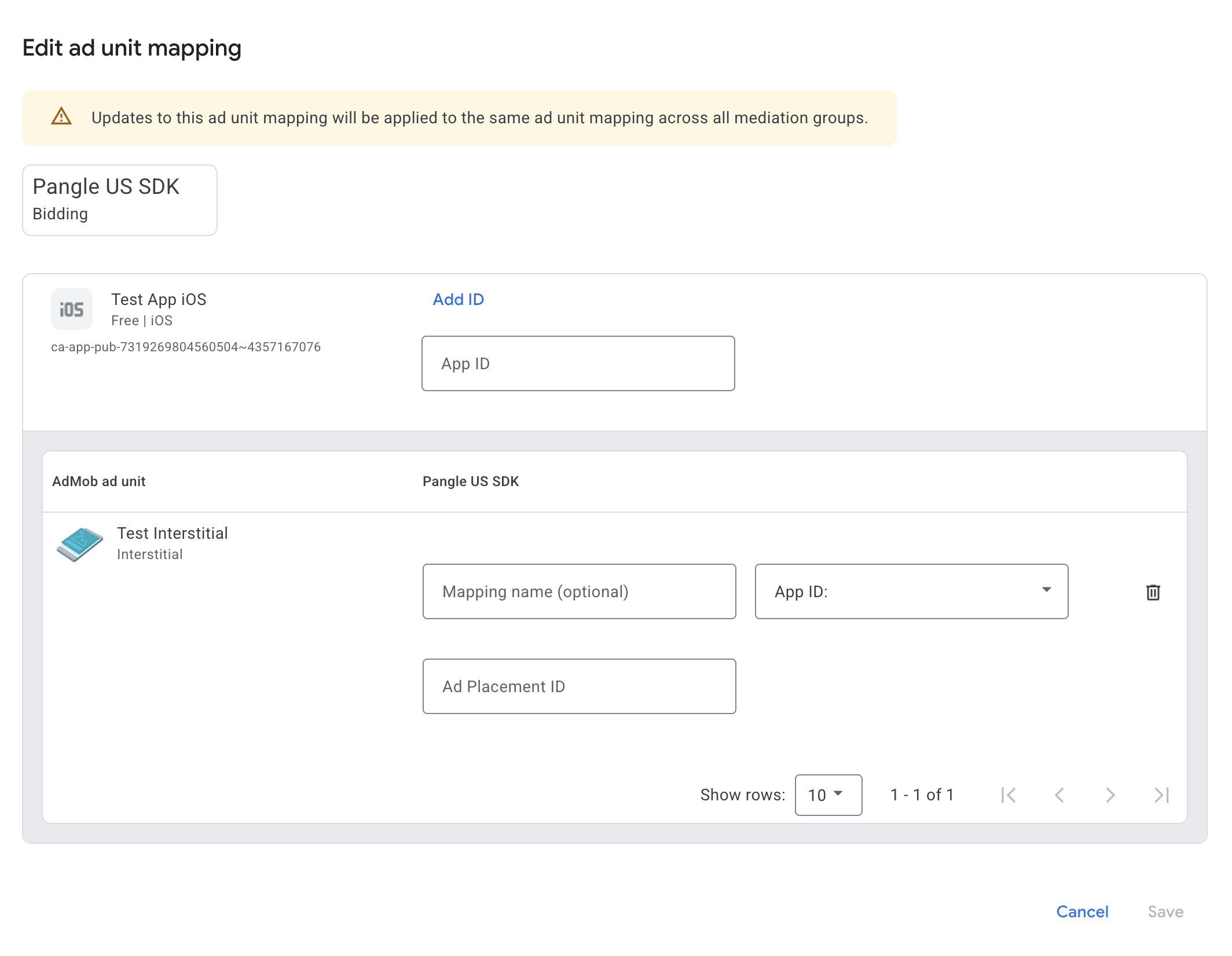

接下来,输入在上一部分中获取的 App ID and Ad Placement ID。接着,点击完成。
重要提示: App ID 必须与目标应用相关联,就像在Pangle 界面中一样。瀑布
在广告来源部分的广告瀑布流卡片下,选择添加广告来源。然后选择 Pangle。
选择 Pangle。 然后,为Pangle 输入有效每千次展示费用值,并点击继续。如果您已有 Pangle的映射,则可以选择它。否则,请点击添加映射。
接下来,输入在上一部分中获取的 App ID and Ad Placement ID。接着,点击完成。
Step 3: Import the Pangle SDK and adapter
Using CocoaPods (recommended)
Add the following line to your project's Podfile:
pod 'GoogleMobileAdsMediationPangle'
From the command line run:
pod install --repo-update
Manual integration
- Download the latest version of the
Pangle SDK for iOS
and link all the
.framework
files and bundles in your project. - Download the latest version of the Pangle adapter from the download link in
the Changelog and link
PangleAdapter.xcframework
in your project.
Step 4: Add required code
SKAdNetwork integration
Follow Pangle's documentation
to add the SKAdNetwork identifiers to your project's Info.plist
file.
Step 5: Test your implementation
启用测试广告
请务必为AdMob 注册您的测试设备,并在 Pangle 界面中启用测试模式。
验证测试广告
如需验证您收到的是来自Pangle的测试广告,请使用相应广告来源在广告检查器中启用单一广告来源测试。 Pangle (Bidding) and Pangle (Waterfall)
Optional Steps
Native ads
Ad rendering
The Pangle adapter returns its native ads as
GADNativeAd
objects. It populates the following
fields
for a
GADNativeAd
.
Field | Assets always included by Pangle adapter |
---|---|
Headline | |
Image | 1 |
Body | |
Icon | |
Call to action | |
Star rating | |
Store | |
Price | |
Advertiser |
1 The Pangle adapter does not
provide direct access to the main image asset for its native ads. Instead, the
adapter populates the
GADMediaView
with a video or an image.
Error codes
If the adapter fails to receive an ad from Pangle, you can check the
underlying error from the ad response using
GADResponseInfo.adNetworkInfoArray
under the following classes:
GADMediationAdapterPangle
Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
101 | com.google.ads.mediation.pangle | Invalid server parameters (e.g. Missing app ID or placement ID). |
102 | com.google.ads.mediation.pangle | The requested ad size does not match a Pangle supported banner size. |
-1-60000 | Sent by Pangle SDK | Pangle SDK returned an error. See Pangle's documentation for more details. |
Pangle iOS Mediation Adapter Changelog
Version 6.2.0.5.0
- Verified compatibility with Pangle SDK version 6.2.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.8.0.
- Pangle SDK version 6.2.0.5.
Version 6.1.0.6.0
- Verified compatibility with Pangle SDK version 6.1.0.6.
Built and tested with:
- Google Mobile Ads SDK version 11.7.0.
- Pangle SDK version 6.1.0.6.
Version 6.1.0.5.0
- Verified compatibility with Pangle SDK version 6.1.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.5.
Version 6.1.0.4.0
- Verified compatibility with Pangle SDK version 6.1.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.4.
Version 6.0.0.6.0
- Verified compatibility with Pangle SDK version 6.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.0.0.6.
Version 6.0.0.5.0
- Verified compatibility with Pangle SDK version 6.0.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.5.
Version 6.0.0.4.0
- Verified compatibility with Pangle SDK version 6.0.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.4.
Version 5.9.0.9.0
- Verified compatibility with Pangle SDK version 5.9.0.9.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 5.9.0.9.
Version 5.9.0.8.0
- Verified compatibility with Pangle SDK version 5.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 11.4.0.
- Pangle SDK version 5.9.0.8.
Version 5.9.0.7.0
- Verified compatibility with Pangle SDK version 5.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 11.3.0.
- Pangle SDK version 5.9.0.7.
Version 5.8.0.8.0
- Verified compatibility with Pangle SDK version 5.8.0.8.
- Updated adapter to use new Pangle SDK signal collection API.
Built and tested with:
- Google Mobile Ads SDK version 11.2.0.
- Pangle SDK version 5.8.0.8.
Version 5.8.0.7.0
- Verified compatibility with Pangle SDK version 5.8.0.7.
- Now requires minimum iOS version 12.0.
- Now requires Google Mobile Ads SDK version 11.0 or higher.
- Included
Info.plist
in the frameworks withinPangleAdapter.xcframework
.
Built and tested with:
- Google Mobile Ads SDK version 11.0.1.
- Pangle SDK version 5.8.0.7.
Version 5.7.0.7.0
- Verified compatibility with Pangle SDK version 5.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.7.
Version 5.7.0.6.0
- Verified compatibility with Pangle SDK version 5.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.6.
Version 5.6.0.8.0
- Verified compatibility with Pangle SDK version 5.6.0.8.
- Refactored the
+setCOPPA
method by replacing the deprecatedadConfiguration.childDirectedTreatment
property with the newGADMobileAds.sharedInstance.requestConfiguration.tagForChildDirectedTreatment
property.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.6.0.8.
Version 5.5.0.9.0
- Verified compatibility with Pangle SDK version 5.5.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.13.0.
- Pangle SDK version 5.5.0.9.
Version 5.5.0.7.0
- Verified compatibility with Pangle SDK version 5.5.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.12.0.
- Pangle SDK version 5.5.0.7.
Version 5.5.0.5.0
- Verified compatibility with Pangle SDK version 5.5.0.5.
Built and tested with:
- Google Mobile Ads SDK version 10.11.0.
- Pangle SDK version 5.5.0.5.
Version 5.4.1.1.0
- Added bidding support for app open ad format.
- Verified compatibility with Pangle SDK version 5.4.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.10.0.
- Pangle SDK version 5.4.1.1.
Version 5.4.0.9.0
- Verified compatibility with Pangle SDK version 5.4.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.9.
Version 5.4.0.8.0
- Fixed an issue where
GADPangleNetworkExtras
did not conform toGADAdNetworkExtras
protocol. - Implemented
adDidShowFail
protocol method in interstitial, rewarded, and app open ads. - Verified compatibility with Pangle SDK version 5.4.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.8.
Version 5.3.1.2.0
- Verified compatibility with Pangle SDK version 5.3.1.2.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.2.
Version 5.3.1.0.0
- Verified compatibility with Pangle SDK version 5.3.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.0.
Version 5.2.1.1.0
- Verified compatibility with Pangle SDK version 5.2.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.7.0.
- Pangle SDK version 5.2.1.1.
Version 5.2.0.9.0
- Verified compatibility with Pangle SDK version 5.2.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.9.
Version 5.2.0.8.0
- Verified compatibility with Pangle SDK version 5.2.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.8.
Version 5.2.0.7.0
- Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
- Verified compatibility with Pangle SDK version 5.2.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.7.
Version 5.2.0.6.0
- Verified compatibility with Pangle SDK version 5.2.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.6.
Version 5.1.1.0.0
- Verified compatibility with Pangle SDK version 5.1.1.0.
- Added support for the
arm64
simulator architecture. - Now requires Google Mobile Ads SDK version 10.4.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.4.0.
- Pangle SDK version 5.1.1.0.
Version 5.1.0.6.0
- Verified compatibility with Pangle SDK version 5.1.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.3.0.
- Pangle SDK version 5.1.0.6.
Version 5.0.1.0.0
- Verified compatibility with Pangle SDK version 5.0.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.1.0.
Version 5.0.0.8.0
- Verified compatibility with Pangle SDK version 5.0.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.0.8.
Version 5.0.0.7.0
- Verified compatibility with Pangle SDK version 5.0.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.7.
Version 5.0.0.6.0
- Verified compatibility with Pangle SDK version 5.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.6.
Version 4.9.1.0.0
- Removed support for the
armv7
architecture. - Verified compatibility with Pangle SDK version 4.9.1.0.
- Now requires minimum iOS version of 12.0.
- Now requires Google Mobile Ads SDK version 10.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.0.0.
- Pangle SDK version 4.9.1.0.
Version 4.9.0.8.0
- Verified compatibility with Pangle SDK version 4.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.8.
Version 4.9.0.7.0
- Verified compatibility with Pangle SDK version 4.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.7.
Version 4.9.0.6.0
- Verified compatibility with Pangle SDK version 4.9.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.6.
Version 4.8.1.0.0
- Verified compatibility with Pangle SDK version 4.8.1.0.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.8.1.0.
Version 4.8.0.9.0
- Verified compatibility with Pangle SDK version 4.8.0.9.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.9.
Version 4.8.0.7.0
- Verified compatibility with Pangle SDK version 4.8.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.7.
Version 4.8.0.6.0
- Verified compatibility with Pangle SDK version 4.8.0.6.
- Fixed an issue where the main thread was blocked when loading native ad icon image.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.6.
Version 4.7.0.7.0
- Verified compatibility with Pangle SDK version 4.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.7.
Version 4.7.0.6.0
- Verified compatibility with Pangle SDK version 4.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.6.
Version 4.7.0.5.0
- Verified compatibility with Pangle SDK version 4.7.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.5.
Version 4.7.0.4.0
- Verified compatibility with Pangle SDK version 4.7.0.4.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.7.0.4.
Version 4.6.2.2.0
- Renamed the
setGDPR()
andsetCCPA()
methods from theGADMediationAdapterPangle
class tosetGDPRConsent()
andsetDoNotSell
respectively. - Verified compatibility with Pangle SDK version 4.6.2.2.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.6.2.2.
Version 4.6.1.8.0
- Verified compatibility with Pangle SDK version 4.6.1.8.
- Added bidding support for native ad format.
- Updated the adapter to use the
didRewardUser
API. - Now requires Google Mobile Ads SDK version 9.8.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 9.9.0.
- Pangle SDK version 4.6.1.8.
Version 4.5.2.8.0
- Verified compatibility with Pangle SDK version 4.5.2.8.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.8.
Version 4.5.2.7.0
- Verified compatibility with Pangle SDK version 4.5.2.7.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.7.
Version 4.5.2.5.0
- Verified compatibility with Pangle SDK version 4.5.2.5.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.5.
Version 4.5.2.4.0
- Verified compatibility with Pangle SDK version 4.5.2.4.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.4.
Version 4.5.2.3.0
- Verified compatibility with Pangle SDK version 4.5.2.3.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.3.
Version 4.5.1.3.0
- Verified compatibility with Pangle SDK version 4.5.1.3.
Built and tested with:
- Google Mobile Ads SDK version 9.5.0.
- Pangle SDK version 4.5.1.3.
Version 4.3.1.9.0
- Verified compatibility with Pangle SDK version 4.3.1.9.
Built and tested with:
- Google Mobile Ads SDK version 9.3.0.
- Pangle SDK version 4.3.1.9.
Version 4.3.0.5.0
- Verified compatibility with Pangle SDK version 4.3.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.2.0.
- Pangle SDK version 4.3.0.5.
Version 4.3.0.4.0
- Initial release!
- Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.
Built and tested with:
- Google Mobile Ads SDK version 9.1.0.
- Pangle SDK version 4.3.0.4.
