Integrate InMobi with Mediation

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from InMobi using mediation, covering both waterfall and bidding integrations. It covers how to add InMobi to an ad unit's mediation configuration, and how to integrate the InMobi SDK and adapter into an iOS app.

Supported integrations and ad formats

The mediation adapter for InMobi has the following capabilities:

Integration
Bidding  1
Waterfall
Formats
Banner
Interstitial
Rewarded
Native  2

1 Bidding integration is in open beta.

2 Supported only for waterfall mediation.

Requirements

  • iOS deployment target of 10.0 or higher

Step 1: Set up configurations in InMobi UI

Sign up for an InMobi account. When creating an account, leave the Use InMobi SSP with Google Open Bidding option unchecked.

Once your account is verified, log in.

Add an app

To add your app to the InMobi dashboard, click Inventory > Inventory Settings.

Click Add Inventory and select the Mobile App channel from the drop-down menu.

Start typing your published app store URL in the search bar and select the app from the auto-populated results. Click Continue.

If your app in not published, click Link manually and enter the required details. Click Continue.

Review the App & Website Compliance settings and then click Save and Create Placements.

Placements

After you set up your inventory, the system redirects you to the placement creation workflow.

Select the type of ad unit. Then enter a Placement Name, select Off for Audience Bidding, and fill out the rest of the form. Click Create Placement when done.

Once the placement is created, its details are shown. Take note of the Placement ID, which will be used for setting up your Ad Manager ad unit.

Account ID

Your InMobi account ID is available under Finance > Payment Settings > Payment Information.

Locate InMobi Reporting API Key

Go to My Account > Account Settings. Navigate to the API Key tab and click Generate API Key.

Select the email of the user the key is required for and click Generate API Key. A file containing the API key and username/login name will be generated.

Only the publisher administrator of the account will be able to generate an API key for all users. If you have forgotten the previously generated API key, reset your API key by hovering over your mail on the API Key tab.

Turn on test mode

Enable Test Mode for your placement on all live impressions or certain test devices only.

Step 2: Set up InMobi demand in Ad Manager UI

Sign in to your Ad Manager account.

Add InMobi in Companies

Bidding

This step isn't required for bidding integrations.

Waterfall

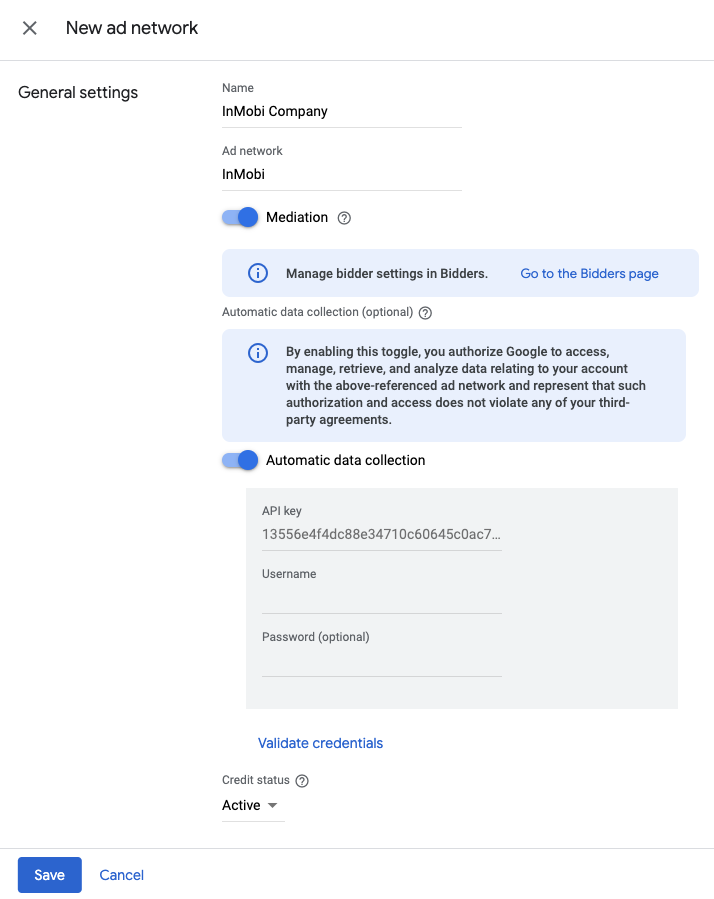

Navigate to Admin > Companies, then click the New company button in the All companies tab. Select Ad network.

Select InMobi as the Ad network, enter a unique Name and enable Mediation. Turn on Automatic data collection, and enter the Username and API Key obtained in the previous section.

Next, enter your Username and click Save when done.

Enable secure signal sharing

Bidding

Navigate to Admin > Global settings. Go to the Ad Exchange account settings tab and review and toggle on Secure signal sharing. Click Save.

Waterfall

This step isn't required for waterfall integrations.

Configure InMobi bidding

Bidding

Navigate to Delivery > Bidders, and click New bidder under the SDK Bidding tab.

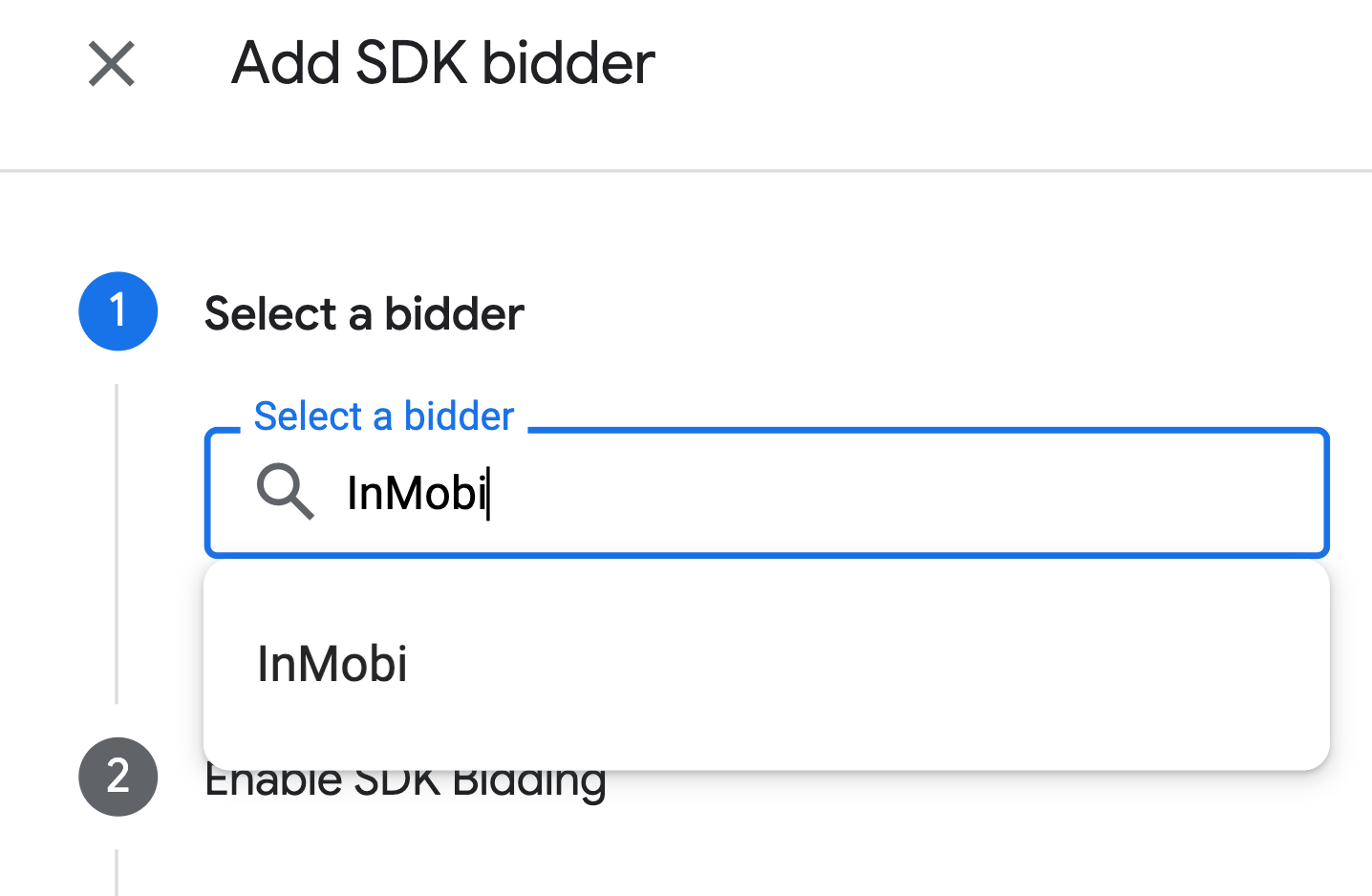

Select InMobi as the bidder.

Toggle on Add this bidder's signal library to the list of allowed signals and Allow signals to be shared with this bidder. Then, click Continue.

Click Continue.

Click Done.

Waterfall

This step isn't required for waterfall integrations.

Configure ad unit mapping

Bidding

Navigate to Delivery > Bidders, and select the company for InMobi under the SDK Bidding tab.

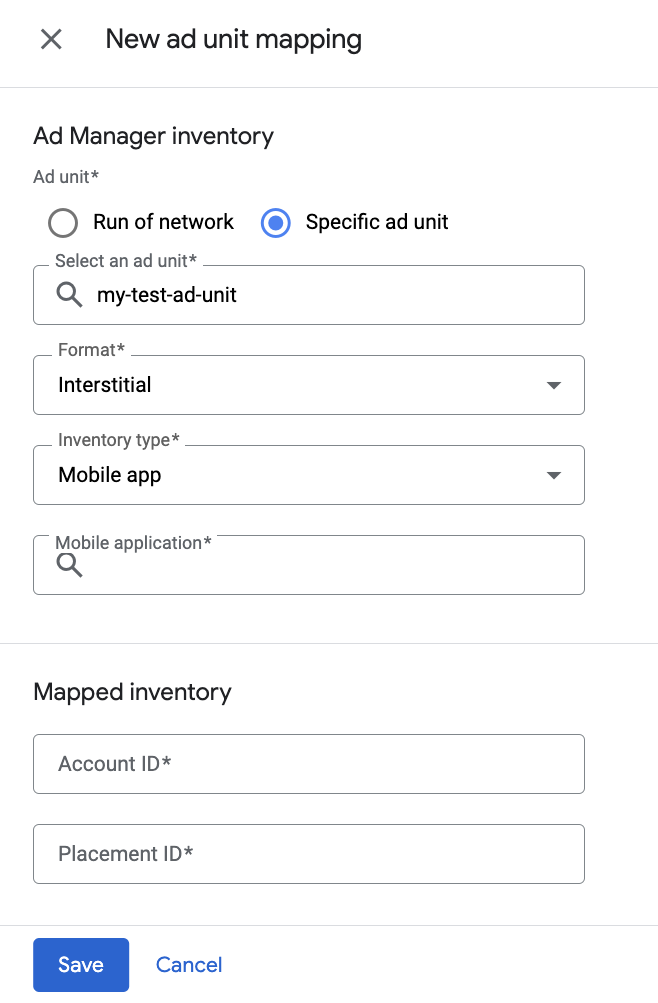

Go to the Ad unit mapping tab and click New ad unit mapping.

Choose Specific ad unit. Select an ad unit and format, Mobile app as the Inventory type, and your Mobile application. Then, enter Account ID and Placement ID obtained in the previous section. Finally, click Save.

Waterfall

Navigate to Delivery > Yield groups and click the New yield group button. Select your Mobile application.

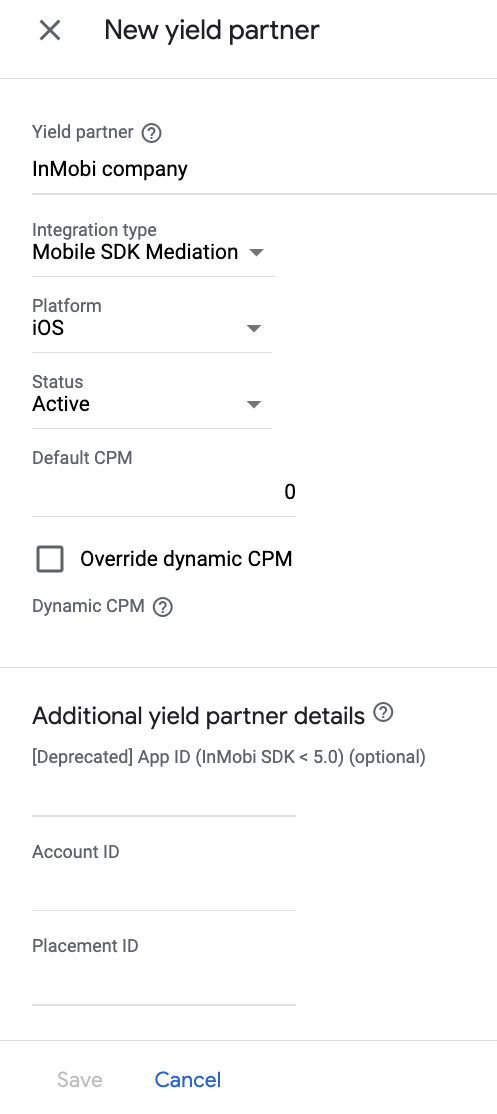

Scroll down and click Add yield partner.

Select the company you created for InMobi in the previous section. Choose Mobile SDK mediation as the Integration type, iOS as the Platform, and Active as the Status.

Enter the Account ID and Placement ID obtained in the previous section, and the Default CPM value. Click Save.

Note: Automatic data collection takes a few days to gather data before it can accurately calculate a Dynamic CPM value for a mediation network. Once the eCPM can be calculated, it is automatically updated on your behalf.

Add InMobi to GDPR and US state regulations ad partners list

Follow the steps in GDPR settings and US state regulations settings to add InMobi to the GDPR and US state regulations ad partners list in the Ad Manager UI.

Step 3: Import the InMobi SDK and adapter

  • Add the following line to your project's Podfile:

    pod 'GoogleMobileAdsMediationInMobi'

  • From the command line run:

    pod install --repo-update

Manual integration

  • Download the latest version of the InMobi iOS SDK and link InMobiSDK.framework in your project.
  • Download the latest version of the InMobi adapter from the download link in the Changelog, and link InMobiAdapter.framework in your project.
  • Add the following Frameworks to your project
    • libsqlite3.0.tbd
    • libz.tbd
    • WebKit.framework

Project settings

Add -ObjC flag to the Other Linker Flags under Application Target > Build Settings.

Step 4: Implement privacy settings on InMobi SDK

Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.

In version 7.1.1.0, the InMobi adapter added the GADMInMobiConsent class that lets you pass consent information to InMobi. The following sample code calls updateGDPRConsent on the GADMInMobiConsent class. If you choose to call this method, it is recommended that you do so prior to requesting ads through the Google Mobile Ads SDK.

Swift

import InMobiAdapter
// ...

var consentObject = Dictionary<String, String>()
consentObject["gdpr"] = "1"
consentObject[IM_GDPR_CONSENT_AVAILABLE] = "true"

GADMInMobiConsent.updateGDPRConsent(consentObject)

Objective-C

#import <InMobiAdapter/InMobiAdapter.h>
// ...

NSMutableDictionary *consentObject = [[NSMutableDictionary alloc] init];
[consentObject setObject:@"1" forKey:@"gdpr"];
[consentObject setObject:@"true" forKey:IM_GDPR_CONSENT_AVAILABLE];

[GADMInMobiConsent updateGDPRConsent:consentObject];

See InMobi's GDPR implementation details for more information about the possible keys and values that InMobi accepts in this consent object.

US states privacy laws

US states privacy laws require giving users the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered through a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The US states privacy laws compliance guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance.

In version 10.5.6.0, the InMobi adapter added support to read IAB U.S. Privacy string from NSUserDefaults. Follow the instructions in U.S. states privacy laws documentation to set the U.S. Privacy string in NSUserDefaults.

Additionally, see InMobi's CCPA documentation for guidelines on how to enable CCPA settings in InMobi dashboard.

Step 5: Additional code required

SKAdNetwork integration

Follow InMobi's documentation to add the SKAdNetwork identifiers to your project's Info.plist file.

Step 6: Test your implementation

Enable test ads

Make sure you register your test device for Ad Manager and enable test mode in InMobi UI.

Verify test ads

To verify that you are receiving test ads from InMobi, enable single ad source testing in ad inspector using the InMobi (Bidding) and InMobi (Waterfall) ad source(s).

Optional steps

Network-specific parameters

The InMobi adapter supports additional request parameters that can be passed to the adapter using the GADInMobiExtras class. GADInMobiExtras includes the following properties common for all supported ad formats:

Request parameters and values
setAgeGroup
The user's age group.		 kIMSDKAgeGroupBelow18
kIMSDKAgeGroupBetween18And24
kIMSDKAgeGroupBetween25And29
kIMSDKAgeGroupBetween30And34
kIMSDKAgeGroupBetween35And44
kIMSDKAgeGroupBetween45And54
kIMSDKAgeGroupBetween55And64
kIMSDKAgeGroupAbove65
setEducationType
The education level of the user. 		kIMSDKEducationHighSchoolOrLess
kIMSDKEducationCollegeOrGraduate
kIMSDKEducationPostGraduateOrAbove
setLogLevel kIMSDKLogLevelNone
kIMSDKLogLevelError
kIMSDKLogLevelDebug
setAge Integer. The user's age.
setYearOfbirth Integer. The user's year of birth.
setPostalCode String. The user's postal code. Usually a five-digit number.
setAreaCode String. The user's telephone area code (part of the phone number).
setLanguage String. The user's native language (if known).
setLoginId String. A login ID in the publisher's domain.
setSessionId String. A session ID in the publisher's domain.
setLocationWithCityStateCountry String. Location with city, state, and country as parameters.
setKeywords String. Any contextually relevant keywords to be passed in the ad request.
setInterests String. Any contextually relevant strings to be passed in the ad request.
setAdditionalParameters Dictionary. Any additional values to be passed in the ad request.

Here's a code example of how to set these ad request parameters:

Swift

let request = GAMRequest()
let extras = GADInMobiExtras()
extras.ageGroup = kIMSDKAgeGroupBetween35And54
extras.areaCode = "12345"
request.registerAdNetworkExtras(extras)

Objective-C

GAMRequest *request = [GAMRequest request];
GADInMobiExtras *extras = [[GADInMobiExtras alloc] init];
extras.ageGroup = kIMSDKAgeGroupBetween35And54;
extras.areaCode = @"12345";
[request registerAdNetworkExtras:extras];

Using native ads

Ad rendering

The InMobi adapter returns its native ads as GADNativeAd objects. It populates the following fields for a GADNativeAd.

Field Assets always included by InMobi adapter
Headline
Image 1
Media view
Body
App icon
Call to action
Star rating
Store
Price

1 The InMobi adapter does not provide direct access to the main image asset for its native ads. Instead, the adapter populates the GADMediaView with a video or an image.

Impression and click tracking

Clicks are detected by the Google Mobile Ads SDK and are forwarded to InMobi, so click reporting will be in sync.

The Google Mobile Ads SDK uses the InMobi SDK's callbacks for impression tracking, so the reports on both dashboards should match up with few to no discrepancies.

Error codes

If the adapter fails to receive an ad from InMobi, publishers can check the underlying error from the ad response using GADResponseInfo.adNetworkInfoArray under the following classes:

GADMAdapterInMobi
GADMediationAdapterInMobi

Here are the codes and accompanying messages thrown by the InMobi adapter when an ad fails to load:

Error code Reason
101 InMobi server parameters configured in the Ad Manager UI are missing/invalid.
102 InMobi Adapter does not support the ad format being requested.
103 An InMobi ad is already loaded for this network configuration.
Other InMobi SDK returned an error. See IMRequestStatus.h for more details.

InMobi iOS Mediation Adapter Changelog

Version 10.7.8.0

  • Verified compatibility with InMobi SDK 10.7.8.

Built and tested with:

  • Google Mobile Ads SDK version 11.10.0.
  • InMobi SDK version 10.7.8.

Version 10.7.5.1

  • Updated CFBundleShortVersionString to have three components instead of four.

Built and tested with:

  • Google Mobile Ads SDK version 11.10.0.
  • InMobi SDK version 10.7.5.

Version 10.7.5.0

  • Verified compatibility with InMobi SDK 10.7.5.

Built and tested with:

  • Google Mobile Ads SDK version 11.7.0.
  • InMobi SDK version 10.7.5.

Version 10.7.4.0

  • Verified compatibility with InMobi SDK 10.7.4.

Built and tested with:

  • Google Mobile Ads SDK version 11.6.0.
  • InMobi SDK version 10.7.4.

Version 10.7.2.0

  • Verified compatibility with InMobi SDK 10.7.2.

Built and tested with:

  • Google Mobile Ads SDK version 11.3.0.
  • InMobi SDK version 10.7.2.

Version 10.7.1.0

  • Verified compatibility with InMobi SDK 10.7.1.

Built and tested with:

  • Google Mobile Ads SDK version 11.2.0.
  • InMobi SDK version 10.7.1.

Version 10.6.4.0

  • Verified compatibility with InMobi SDK 10.6.4.
  • Replaced the deprecated method GADMobileAds.sharedInstance.sdkVersion with GADMobileAds.sharedInstance.versionNumber.
  • Replaced the use of NSUserDefaults with CFPreferences functions.
  • Now requires minimum iOS version 12.0.
  • Now requires Google Mobile Ads SDK version 11.0 or higher.
  • Included Info.plist in the frameworks within InMobiAdapter.xcframework.

Built and tested with:

  • Google Mobile Ads SDK version 11.0.1.
  • InMobi SDK version 10.6.4.

Version 10.6.0.0

  • Verified compatibility with InMobi SDK 10.6.0.
  • Added watermark support for bidding banner, interstitial and rewarded ad formats.

Built and tested with:

  • Google Mobile Ads SDK version 10.13.0.
  • InMobi SDK version 10.6.0.

Version 10.5.8.0

  • Verified compatibility with InMobi SDK 10.5.8.

Built and tested with:

  • Google Mobile Ads SDK version 10.10.0.
  • InMobi SDK version 10.5.8.

Version 10.5.6.0

  • Added support to read IAB U.S. Privacy string from NSUserDefaults.
  • Verified compatibility with InMobi SDK 10.5.6.
  • Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.

Built and tested with:

  • Google Mobile Ads SDK version 10.9.0.
  • InMobi SDK version 10.5.6.

Version 10.5.5.0

  • Now requires Google Mobile Ads SDK version 10.4.0 or higher.
  • Updated the adapter to use the didRewardUser API.
  • Updated the adapter to initialize InMobi SDK on main thread.

Built and tested with:

  • Google Mobile Ads SDK version 10.4.0.
  • InMobi SDK version 10.5.5.

Version 10.5.4.0

  • Verified compatibility with InMobi SDK 10.5.4.
  • Removed use of deprecated gender, birthday and location mediation APIs.
  • Removed support for the armv7 architecture.
  • Now requires minimum iOS version 11.0.
  • Now requires Google Mobile Ads SDK version 10.0.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 10.2.0.
  • InMobi SDK version 10.5.4.

Additional notes:

  • This release was created before Version 10.1.3.0 so it does not use the didRewardUser API.

Version 10.1.3.0

  • Verified compatibility with InMobi SDK 10.1.3.
  • Now requires Google Mobile Ads SDK version 10.4.0 or higher.
  • Updated the adapter to use the didRewardUser API.

Built and tested with:

  • Google Mobile Ads SDK version 10.5.0.
  • InMobi SDK version 10.1.3.

Additional notes:

Version 10.1.2.1

  • Verified compatibility with InMobi SDK 10.1.2.
  • Fixed an issue where the native ads could become blank in scrollable UIs.
  • Updated the adapter to use the new mediation APIs.
  • Added support for forwarding the COPPA value to InMobi SDK.

Built and tested with:

  • Google Mobile Ads SDK version 9.14.0.
  • InMobi SDK version 10.1.2.

Version 10.1.2.0

  • Verified compatibility with InMobi SDK 10.1.2.

Built and tested with:

  • Google Mobile Ads SDK version 9.13.0.
  • InMobi SDK version 10.1.2.

Version 10.1.1.0

  • Verified compatibility with InMobi SDK 10.1.1.

Built and tested with:

  • Google Mobile Ads SDK version 9.12.0.
  • InMobi SDK version 10.1.1.

Version 10.1.0.0

  • Verified compatibility with InMobi SDK 10.1.0.
  • Updated the adapter to use the didRewardUser API.
  • Now requires Google Mobile Ads SDK version 9.8.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 9.11.0.
  • InMobi SDK version 10.1.0.

Version 10.0.7.0

  • Verified compatibility with InMobi SDK 10.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 9.5.0.
  • InMobi SDK version 10.0.7.

Version 10.0.5.0

  • Verified compatibility with InMobi SDK 10.0.5.

Built and tested with:

  • Google Mobile Ads SDK version 9.2.0.
  • InMobi SDK version 10.0.5.

Version 10.0.2.1

  • Verified compatibility with Google Mobile Ads SDK version 9.0.0.
  • Now requires Google Mobile Ads SDK version 9.0.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 9.0.0.
  • InMobi SDK version 10.0.2.

Version 10.0.2.0

  • Verified compatibility with InMobi SDK 10.0.2.

Built and tested with

  • Google Mobile Ads SDK version 8.13.0.
  • InMobi SDK version 10.0.2.

Version 10.0.1.0

  • Verified compatibility with InMobi SDK 10.0.1.

Built and tested with

  • Google Mobile Ads SDK version 8.12.0.
  • InMobi SDK version 10.0.1.

Version 10.0.0.0

  • Verified compatibility with InMobi SDK 10.0.0.
  • Now requires minimum iOS version 10.0.

Built and tested with

  • Google Mobile Ads SDK version 8.11.0.
  • InMobi SDK version 10.0.0.

Version 9.2.1.0

  • Verified compatibility with InMobi SDK 9.2.1.

Built and tested with

  • Google Mobile Ads SDK version 8.9.0.
  • InMobi SDK version 9.2.1.

Version 9.2.0.0

  • Verified compatibility with InMobi SDK 9.2.0.
  • Relaxed dependency to Google Mobile Ads SDK version 8.0.0 or higher.

Built and tested with

  • Google Mobile Ads SDK version 8.8.0.
  • InMobi SDK version 9.2.0.

Version 9.1.7.0

  • Verified compatibility with InMobi SDK 9.1.7.
  • Now requires Google Mobile Ads SDK version 8.3.0 or higher.

Built and tested with

  • Google Mobile Ads SDK version 8.3.0.
  • InMobi SDK version 9.1.7.

Version 9.1.5.0

  • Verified compatibility with InMobi SDK 9.1.5.
  • Now requires Google Mobile Ads SDK version 8.1.0 or higher.

Built and tested with

  • Google Mobile Ads SDK version 8.1.0.
  • InMobi SDK version 9.1.5.

Version 9.1.1.1

  • Updated the adapter to use the .xcframework format.
  • Now requires Google Mobile Ads SDK version 8.0.0 or higher.

Built and tested with

  • Google Mobile Ads SDK version 8.0.0.
  • InMobi SDK version 9.1.1.

Version 9.1.1.0

  • Verified compatibility with InMobi SDK 9.1.1.
  • Now requires Google Mobile Ads SDK version 7.68.0 or higher.

Built and tested with

  • Google Mobile Ads SDK version 7.68.0.
  • InMobi SDK version 9.1.1.

Version 9.1.0.0

  • Verified compatibility with InMobi SDK 9.1.0.
  • Now requires Google Mobile Ads SDK version 7.65.0 or higher.

Built and tested with

  • Google Mobile Ads SDK version 7.65.0.
  • InMobi SDK version 9.1.0.

Version 9.0.7.2

  • Rewarded ads no longer default to coppa=0 when child directed treatment is unspecified.

Built and tested with

  • Google Mobile Ads SDK version 7.61.0.
  • InMobi SDK version 9.0.7.

Version 9.0.7.1

  • Now requires Google Mobile Ads SDK version 7.61.0 or higher.
  • Added standardized adapter error codes and messages.

Built and tested with

  • Google Mobile Ads SDK version 7.61.0.
  • InMobi SDK version 9.0.7.

Version 9.0.7.0

  • Verified compatibility with InMobi SDK 9.0.7.

Built and tested with

  • Google Mobile Ads SDK version 7.60.0.
  • InMobi SDK version 9.0.7.

Version 9.0.6.0

  • Verified compatibility with InMobi SDK 9.0.6.
  • Updated InMobi iOS adapter CocoaPod dependency to use InMobiSDK/Core.
  • Now requires Google Mobile Ads SDK version 7.60.0 or higher.

Built and tested with

  • Google Mobile Ads SDK version 7.60.0
  • InMobi SDK version 9.0.6

Version 9.0.4.0

  • Verified compatibility with InMobi SDK 9.0.4.
  • Adapter now fails early when InMobi SDK initialization fails.
  • Removed support for the i386 architecture.

Built and tested with

  • Google Mobile Ads SDK version 7.57.0
  • InMobi SDK version 9.0.4

Version 9.0.0.0

  • Verified compatibility with InMobi SDK 9.0.0.
  • Removed bidding capability for banner, interstitial, and rewarded formats.

Built and tested with

  • Google Mobile Ads SDK version 7.53.1
  • InMobi SDK version 9.0.0

Version 7.4.0.0

  • Verified compatibility with InMobi SDK 7.4.0.

Version 7.3.2.1

  • Fixed an issue where the adapter fails to initialize due to invalid mediation configurations.

Version 7.3.2.0

  • Verified compatibility with InMobi SDK 7.3.2.
  • Added bidding capability to the adapter for banner, interstitial and rewarded ad formats.

Version 7.3.0.0

  • Verified compatibility with InMobi SDK 7.3.0.
  • Removed support for Native Content and App Install ad requests. Apps must use the Unified Native Ads API to request native ads.
  • Now requires Google Mobile Ads SDK version 7.46.0 or higher.

Version 7.2.7.0

  • Verified compatibility with InMobi SDK 7.2.7.
  • Updated the adapter to use the new rewarded API.
  • Now requires Google Mobile Ads SDK version 7.42.2 or higher.
  • Added support for flexible banner ad sizes.

Version 7.2.4.0

  • Verified compatibility with InMobi SDK 7.2.4.

Version 7.2.1.0

  • Verified compatibility with InMobi SDK 7.2.1.

Version 7.2.0.0

  • Verified compatibility with InMobi SDK 7.2.0.

Version 7.1.2.0

  • Verified compatibility with InMobi SDK 7.1.2.

Version 7.1.1.2

  • Added adapterDidCompletePlayingRewardBasedVideoAd: callback to the adapter.

Version 7.1.1.1

  • Added the GADInMobiConsent class which provides updateGDPRConsent and getConsent methods.

Version 7.1.1.0

  • Verified compatibility with InMobi SDK 7.1.1.

Version 7.1.0.0

  • Verified compatibility with InMobi SDK 7.1.0.

Version 7.0.4.1

  • Fixed an issue causing duplicate symbol errors when the adapter was used with those of other networks.

Version 7.0.4.0

  • Updated the adapter to make it compatibility with InMobi SDK 7.0.4.
  • Added support for native video ads.
  • InMobi's SDK does not provide images for ads containing video assets. To avoid potential NullPointerExceptions, when the adapter receives one of these ads it will automatically create a blank NativeAd.Image and include it in the images asset array in the ad object received by the app. Publishers using this adapter are encouraged to avoid using the image assets directly when mediating to InMobi, and instead use GADMediaView in their UI. GADMediaView will automatically display video assets for ads that contain them, and an image asset for ads that don't.

Version 6.2.1.0

  • Verified compatibility with inMobi SDK 6.2.1

Earlier versions

  • Support for banners, interstitials, rewarded video and native ad formats.
